详细参数
| 技术参数 Specifications | ||||||||||||
| Voltage | Frequency | Current | Input Power | Speed | Capacitor | Air Flow | Noise | Temperature | Curve No. | Approvals | ||
| Type | V | Hz | A | W | rpm | u F | m³/h/CFM | dB(A) | Min/Max(℃） | # | ||
| A2D210S-5AN-AA10 | 380/400 | 50 | 0.09 | 38 | 2550 | / | 460/270 | 60 | -30/+60 | ① | CCC,CE,RoHS | |
| 60 | 0.09 | 50 | 2850 | 500/294 | 63 | ② | ||||||

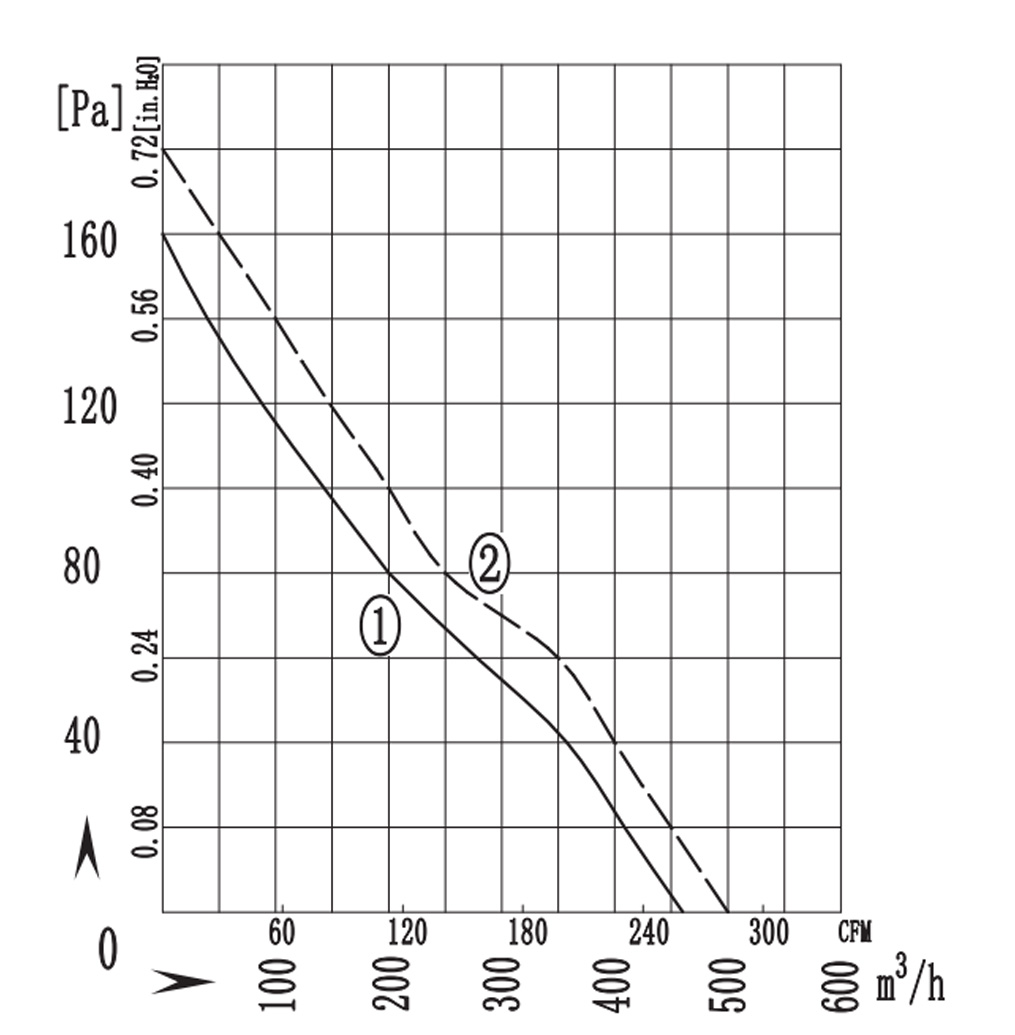

| 曲线 Curves |
 |

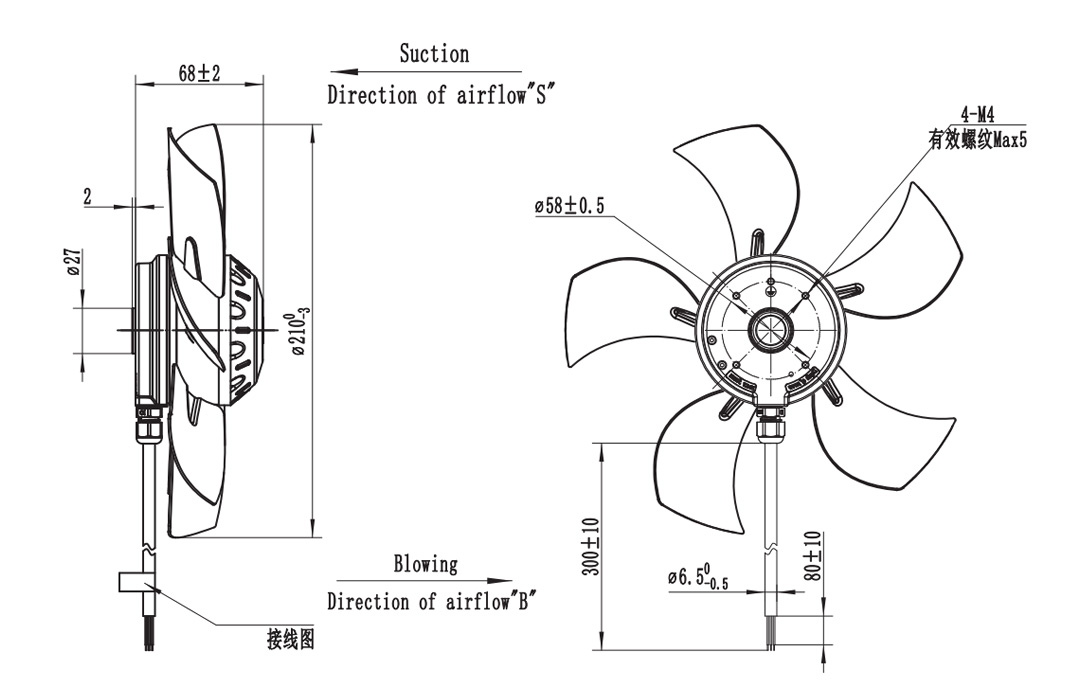

| 外形尺寸 Dimensions |
 |
