详细参数
| 技术参数 Specifications | ||||||||||||
| Voltage | Frequency | Current | Input Power | Speed | Capacitor | Air Flow | Noise | Temperature | Curve No. | Approvals | ||
| Type | V | Hz | A | W | rpm | u F | m³/h/CFM | dB(A) | Min/Max(℃） | # | ||
| A2D250S-5DM-ACS0 | 380/400 | 50 | 0.24 | 120 | 2380 | / | 1750/1030 | 52 | -30/+60 | ① | CCC,CE,RoHS | |
| 60 | 0.25 | 140 | 2500 | 1850/1088 | 53 | ② | ||||||
| A2E250S-5DM-ACS0 | 220/230 | 50 | 0.53 | 120 | 2400 | 3 | 1700/1000 | 52 | -30/+60 | ① | CCC,CE,RoHS | |
| 60 | 0.65 | 140 | 2450 | 1700/1000 | 53 | ② | ||||||

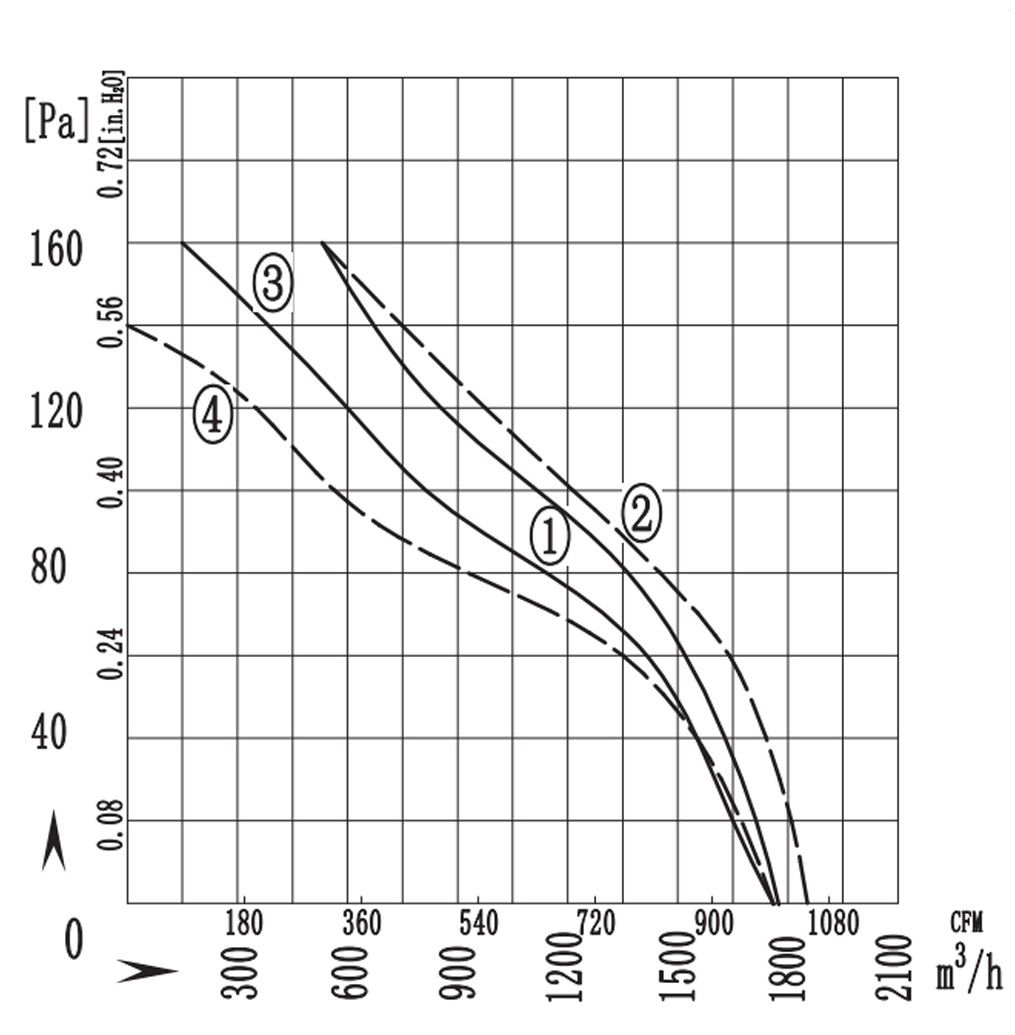

| 曲线 Curves |
 |
| 外形尺寸 Dimensions |
 |
