详细参数
| 技术参数 Specifications | ||||||||||||
| Voltage | Frequency | Current | Input Power | Speed | Capacitor | Air Flow | Noise | Temperature | Curve No. | Approvals | ||
| Type | V | Hz | A | W | rpm | u F | m³/h/CFM | dB(A) | Min/Max(℃） | # | ||
| A6D630S-5DM-ATL0 | 380/400 | 50 | 1.4 | 520 | 900 | / | 10500/6180 | 67 | -30/+60 | ① | CCC,CE,RoHS | |
| 60 | 1.5 | 740 | 1050 | 11000/6474 | 69 | ② | ||||||
| 曲线 Curves |
 |

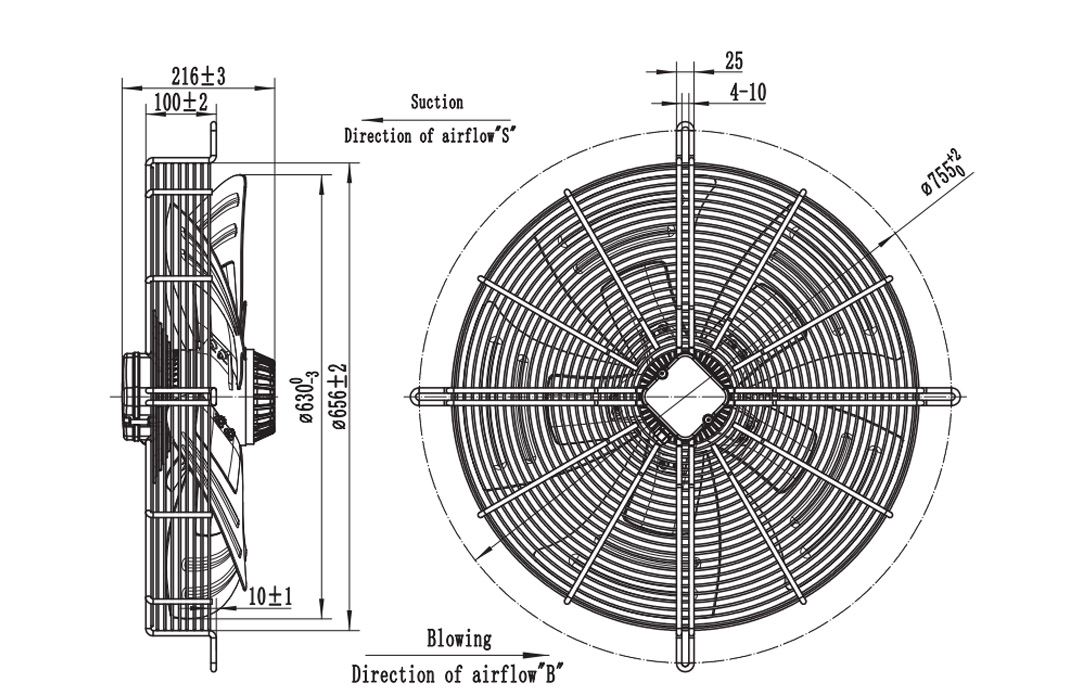

| 外形尺寸 Dimensions |
 |
