详细参数
| 技术参数 Specifications | ||||||||||||
| Voltage | Frequency | Current | Input Power | Speed | Capacitor | Air Flow | Noise | Temperature | Curve No. | Approvals | ||
| Type | V | Hz | A | W | rpm | u F | m³/h/CFM | dB(A) | Min/Max(℃） | # | ||
| B2E250-084A-AL00 | 220/230 | 50 | 0.95 | 192 | 2600 | 7 | 1520/895 | 74 | -30/+60 | ① | CCC,CE,RoHS | |
| 380/400 | 50 | 1.32 | 283 | 2900 | 7 | 1630/960 | 76 | -30/+60 | ① | CCC,CE,RoHS | ||

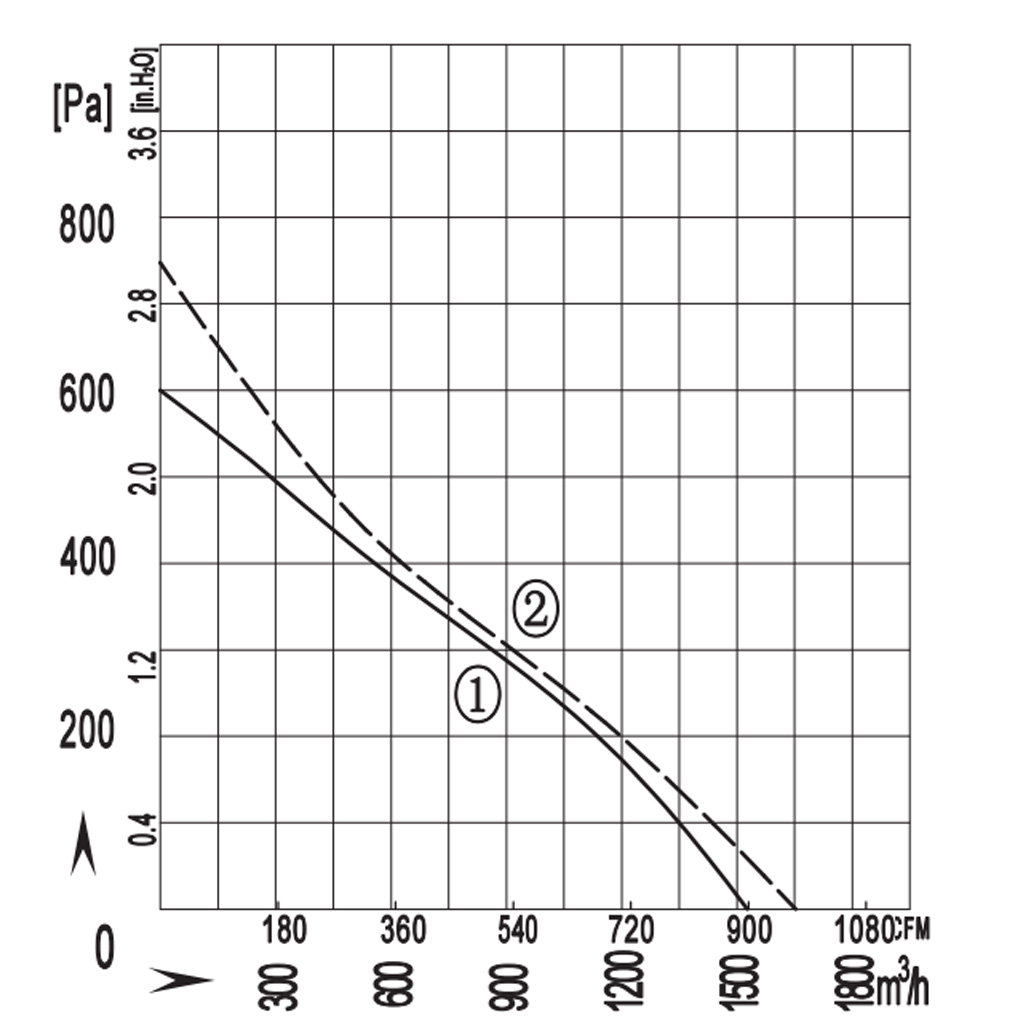

| 曲线 Curves |
 |

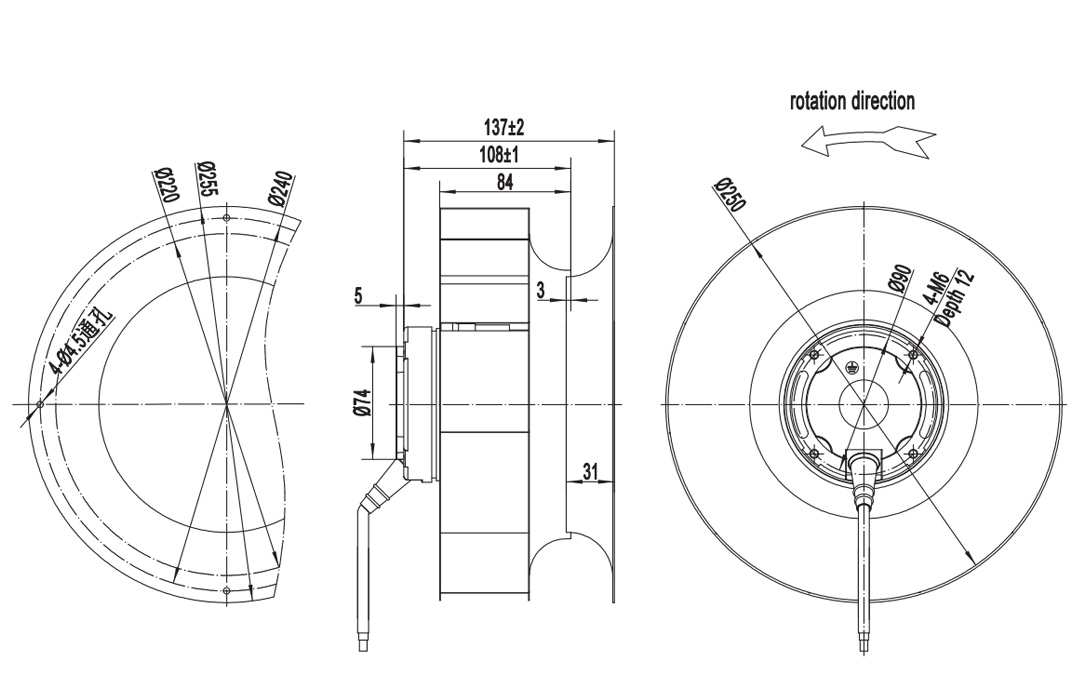

| 外形尺寸 Dimensions |
 |
