详细参数
| 技术参数 Specifications | |||||||||||
| Voltage | Frequency | Current | Input Power | Speed | Capacitor | Air Flow | Noise | Temperature | Curve No. | Approvals | |
| Type | V | Hz | A | W | rpm | u F | m³/h/CFM | dB(A) | Min/Max(℃） | # | |
| B4D450-151A-AT00 | 380/400 | 50 | 1.50 | 650 | 1400 | / | 4900/2882 | 75 | -30/+60 | ① | CCC,CE,RoHS |
| 380/400 | 60 | 1.90 | 960 | 1650 | / | 5800/3411 | 79 | -30/+60 | ② | CCC,CE,RoHS | |

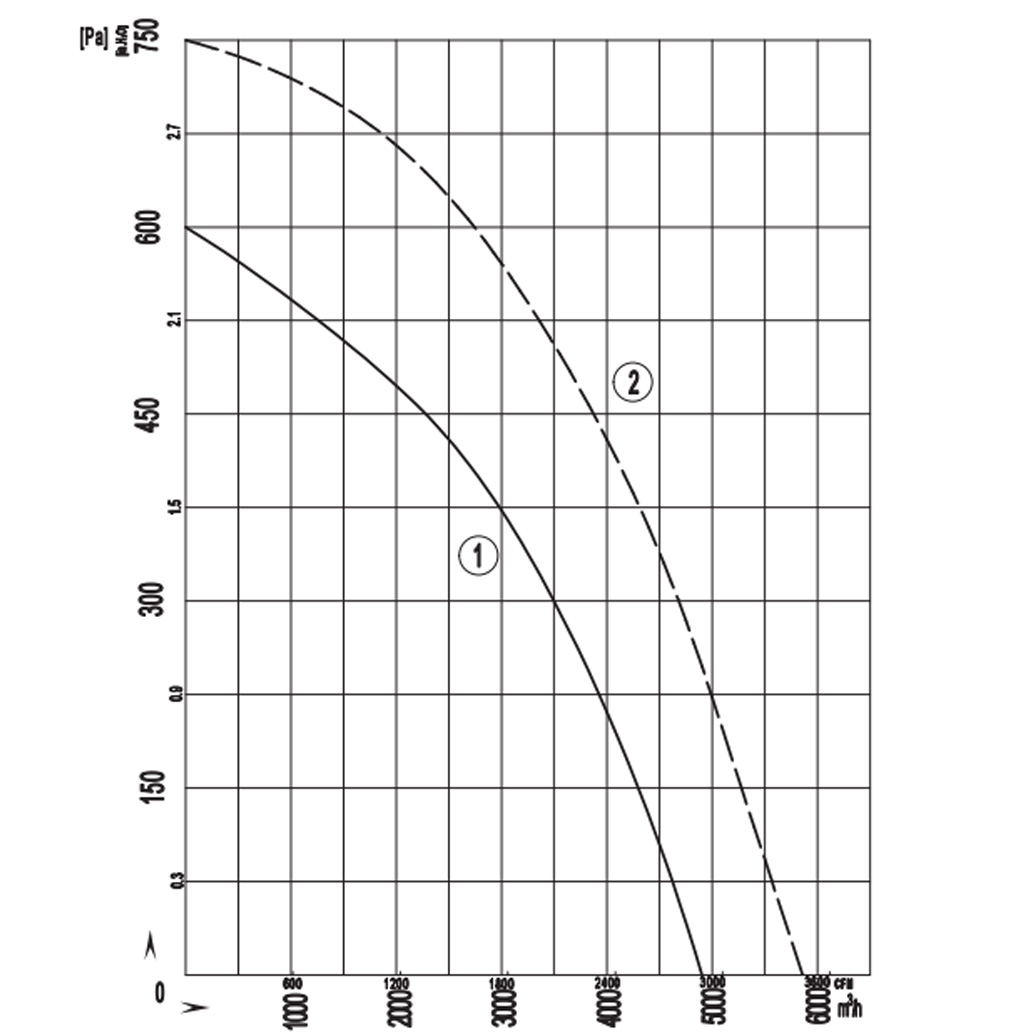

| 曲线 Curves |
 |
| 外形尺寸 Dimensions |
 |
