详细参数
| 技术参数 Specifications | ||||||||||||
| Voltage | Frequency | Current | Input Power | Speed | Capacitor | Air Flow | Noise | Temperature | Curve No. | Approvals | ||
| Type | V | Hz | A | W | RPM | uF | m³/h / CFM | dB(A) | Min / Max (℃) | # | ||
| A2D200S-5KN-AAS0 | 380/400 | 50 | 0.10 | 50 | 2450 | / | 850 /500 | 54 | -30/+80 | ① | CCC.CE,RoHS | |
| 60 | 0.11 | 60 | 2550 | 920 / 541 | 55 | ② | ||||||
| A2E200S-5KN-AAS0 | 220/230 | 50 | 0.30 | 65 | 2450 | 2 | 880 /517 | 52 | -30/+60 | ① | CCC.CE,RoHS | |
| 60 | 0.40 | 85 | 2550 | 980 / 576 | 54 | ② | ||||||
| 曲线 Curves | |||||||
 |
|||||||

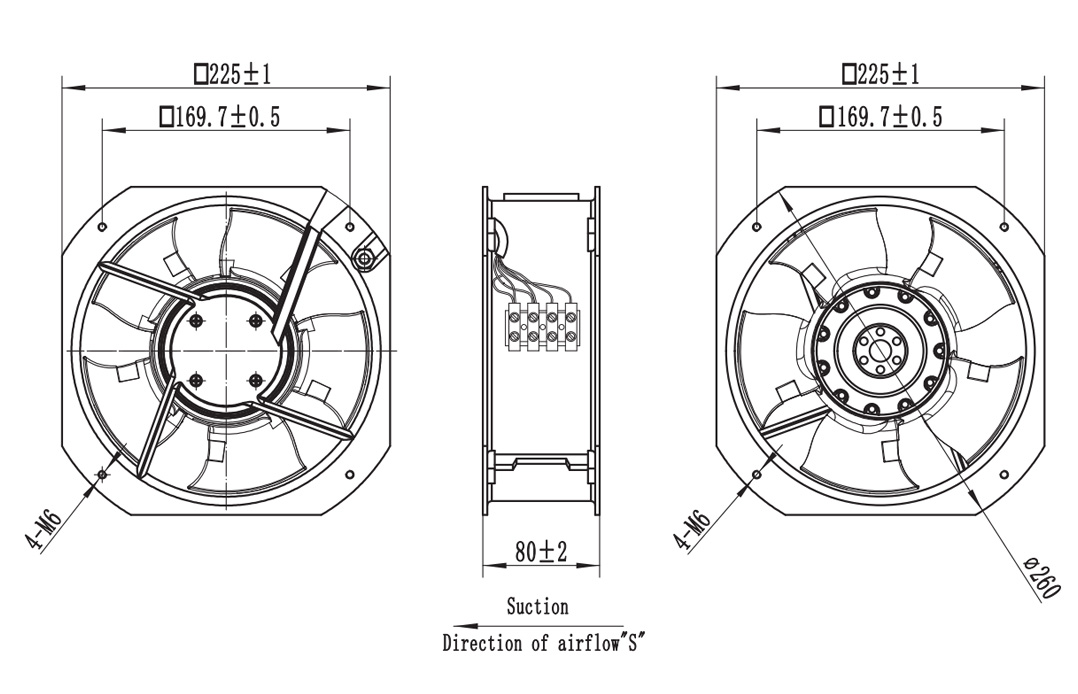

| 外形尺寸 Dimensions |
