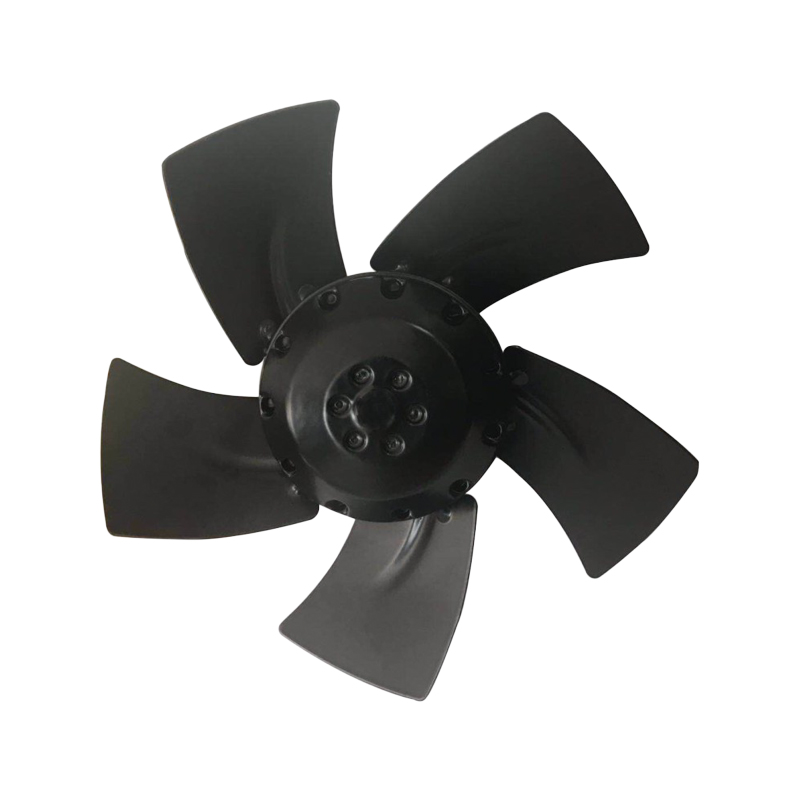

Φ230 AC轴流风机
A230-7K External Rotor Motor Axial Fan
产品概述
风轮材质: 冷轧钢材制成 Material: Cold rolled steel
防护等级: IP44 Protection Class: IP44
认证: CCC CE UL Approvals: CCC CE UL
绝缘等级: F级 Insulation class: F
详细参数
| 技术参数 Specifications | ||||||||||||
| Voltage | Frequency | Current | Input Power | Speed | Capacitor | Air Flow | Noise | Temperature | Curve No. | Approvals | ||
| Type | V | Hz | A | W | rpm | u F | m³/h/CFM | dB(A) | Min/Max(℃） | # | ||
| A2D230S-5AN-AC11 | 380/400 | 50 | 0.23 | 90 | 2600 | / | 1250/737 | 59 | -30/+60 | ① | CCC,CE,RoHS | |
| 60 | 0.22 | 120 | 2950 | 1350/796 | 61 | ② | ||||||
| A2E230S-5AN-AC11 | 220/230 | 50 | 0.45 | 95 | 2600 | 3 | 1250/737 | 59 | -30/+60 | ① | CCC,CE,RoHS | |
| 60 | 0.55 | 120 | 2850 | 1350/796 | 61 | ② | ||||||
| 曲线 Curves |
 |
| 外形尺寸 Dimensions |
 |
