详细参数
| 技术参数 Specifications | ||||||||||||
| Voltage | Frequency | Current | Input Power | Speed | Capacitor | Air Flow | Noise | Temperature | Curve No. | Approvals | ||
| Type | V | Hz | A | W | rpm | u F | m³/h/CFM | dB(A) | Min/Max(℃） | # | ||
| A2D300S-5BN-AN00 | 380/400 | 50 | 0.56 | 270 | 2750 | 3000/1764 | 72 | -30/+60 | ① | CCC,CE,RoHS | ||
| 60 | 0.70 | 400 | 3100 | 3200/1882 | 73 | ② | ||||||
| A2E300S-5BN-AN00 | 220/230 | 50 | 1.20 | 270 | 2750 | 7 | 3000/1764 | 72 | -30/+60 | ① | CCC,CE,RoHS | |
| 60 | 2.00 | 400 | 3000 | 3400/2001 | 73 | ② | ||||||

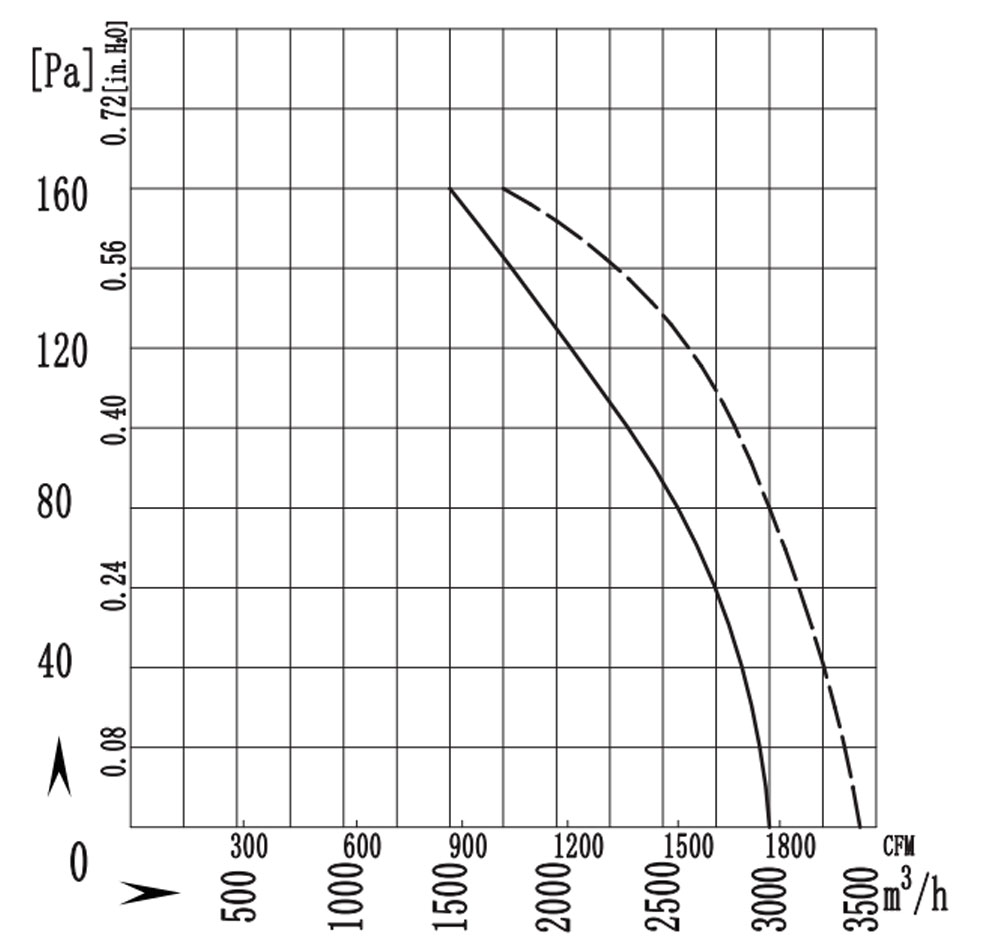

| 曲线 Curves |
 |

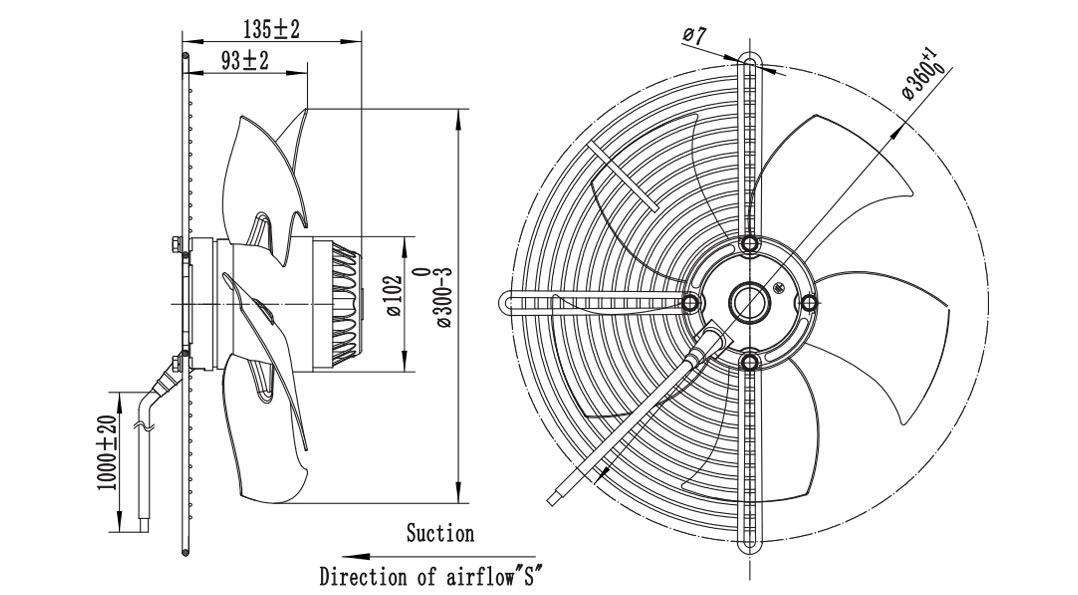

| 外形尺寸 Dimensions |
 |
