详细参数
| 技术参数 Specifications | ||||||||||||
| Voltage | Frequency | Current | Input Power | Speed | Capacitor | Air Flow | Noise | Temperature | Curve No. | Approvals | ||
| Type | V | Hz | A | W | rpm | u F | m³/h/CFM | dB(A) | Min/Max(℃） | # | ||
| A4E500S-5DM-AT00 | 220/230 | 50 | 3.50 | 750 | 1350 | 16 | 9000/5300 | 76 | -30/+60 | ① | CCC,CE,RoHS | |
| 60 | 4.80 | 1000 | 1550 | 10500/6180 | 79 | ② | ||||||
| A4D500S-5DM-ST00 | 380/400 | 50 | 1.50 | 750 | 1350 | / | 9000/5300 | 80 | -30/+60 | ① | CCC,CE,RoHS | |
| 60 | 1.80 | 1000 | 1550 | 10000/5885 | 82 | ② | ||||||
| 50 | 0.90 | 500 | 1150 | 7000/4120 | 70 | ③ | ||||||
| 60 | 1.10 | 650 | 1150 | 7000/4120 | 70 | ③ | ||||||

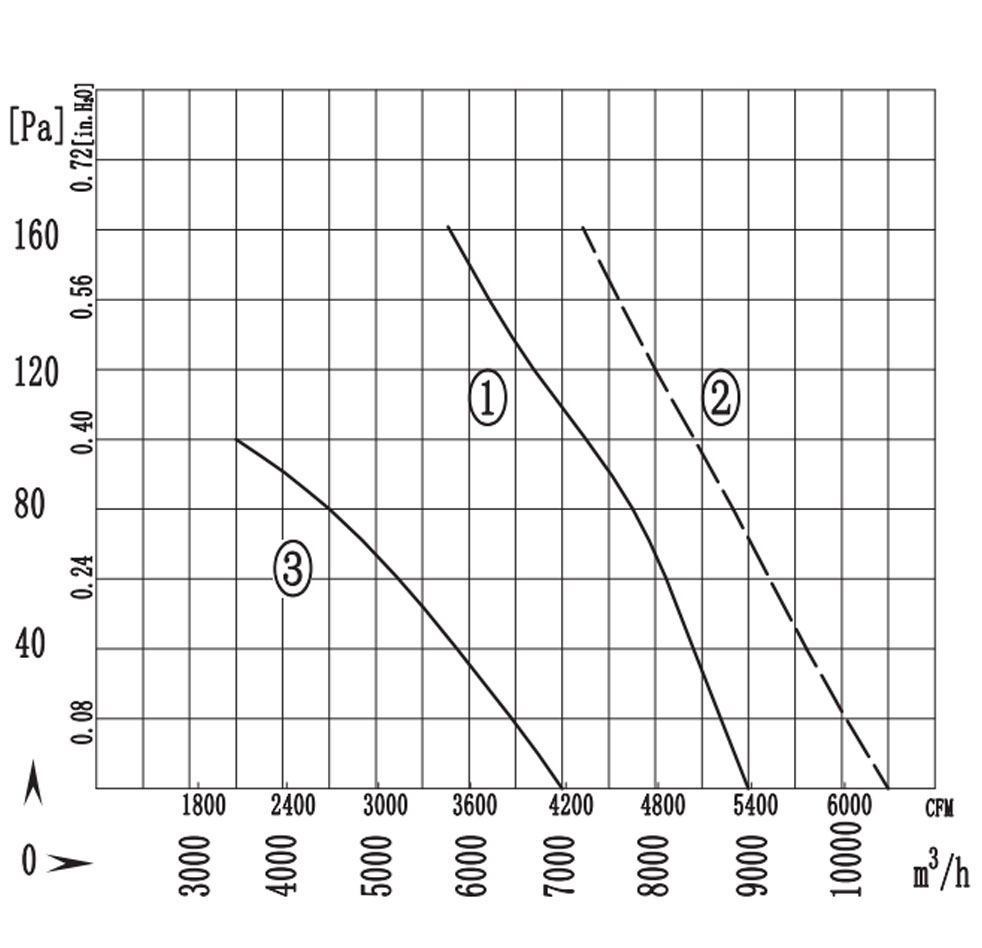

| 曲线 Curves |
 |

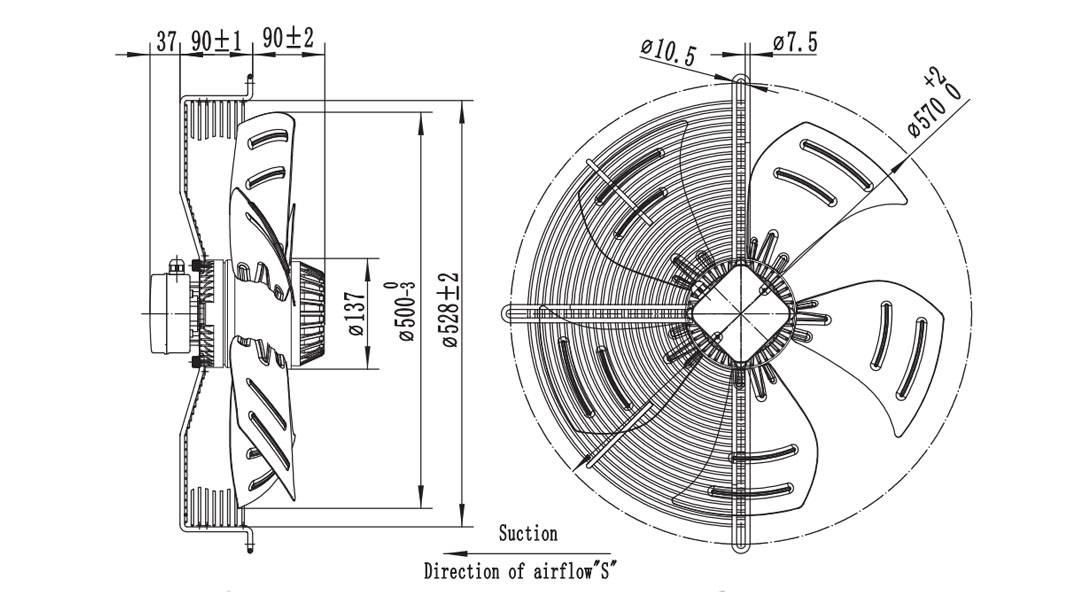

| 外形尺寸 Dimensions |
 |
