详细参数
| 技术参数 Specifications | |||||||||||
| Voltage | Frequency | Current | Input Power | Speed | Capacitor | Air Flow | Noise | Temperature | Curve No. | Approvals | |
| Type | V | Hz | A | W | rpm | u F | m³/h/CFM | dB(A) | Min/Max(℃） | # | |
| B2D355-102A-VT70 | 220 | 50 | 2.5 | 800 | 2750 | / | 3150/1821 | 82 | -30/+60 | ① | CCC,CE,RoHS |
| 380 | 50 | 1.5 | 800 | 2750 | / | 3150/1821 | 82 | -30/+60 | ① | CCC,CE,RoHS | |

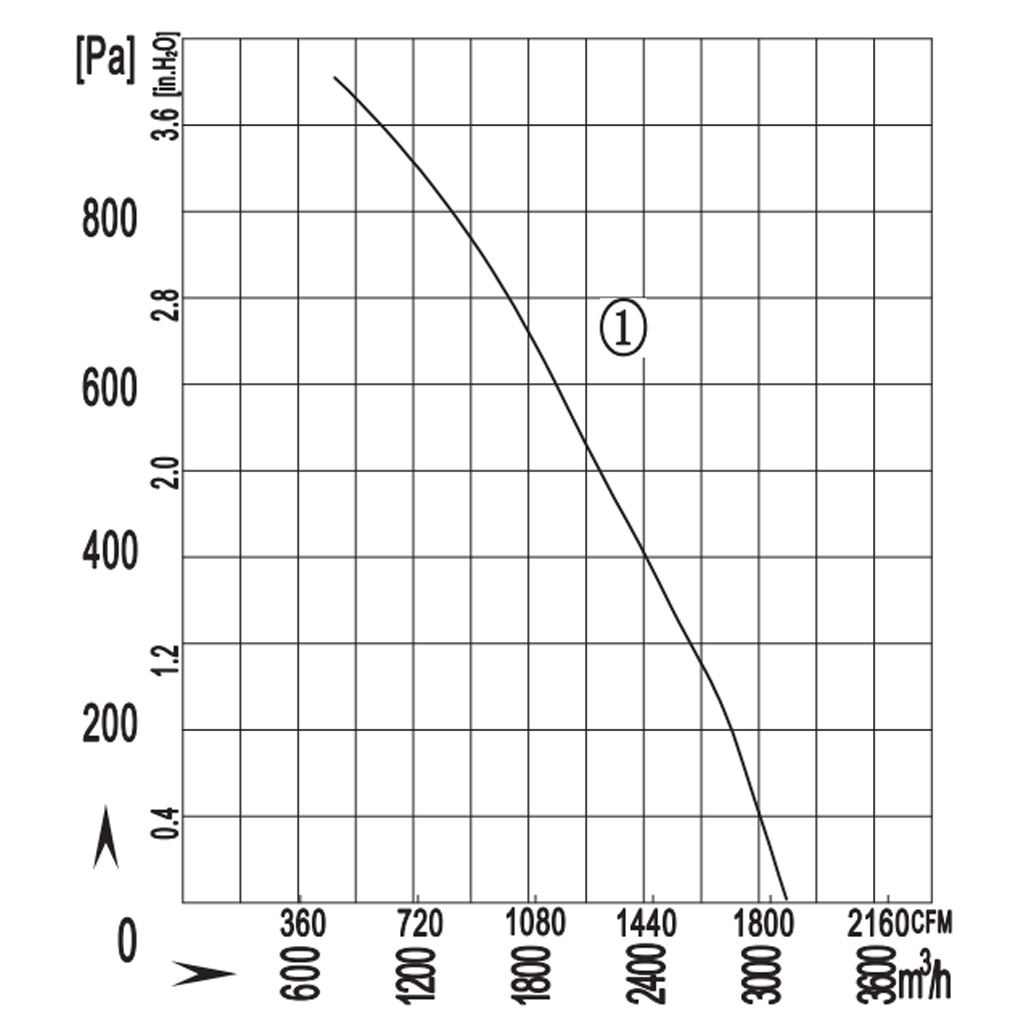

| 曲线 Curves |
 |

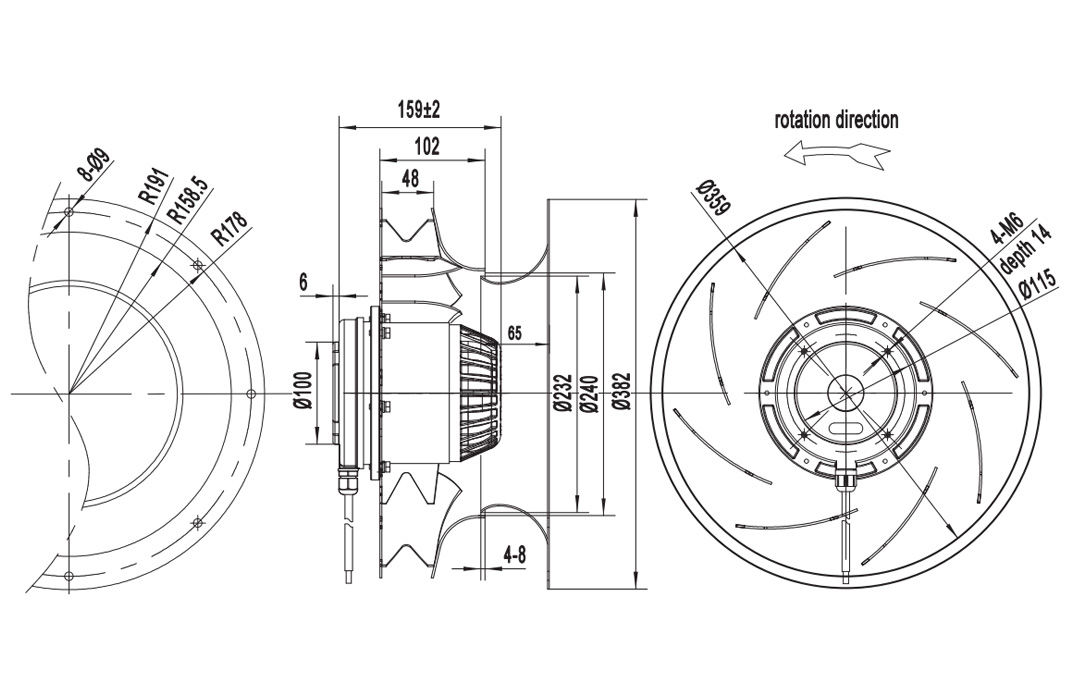

| 外形尺寸 Dimensions |
 |
