详细参数
| 技术参数 Specifications | |||||||||||
| Voltage | Frequency | Current | Input Power | Speed | Capacitor | Air Flow | Noise | Temperature | Curve No. | Approvals | |
| Type | V | Hz | A | W | rpm | u F | m³/h/CFM | dB(A) | Min/Max(℃） | # | |
|
B2D355-132A-AVM0 |
380/400 | 50 | 2.60 | 1600 | 2700 | / | 4500/2647 | 90 | -30/+60 | ① | CCC,CE,RoHS |

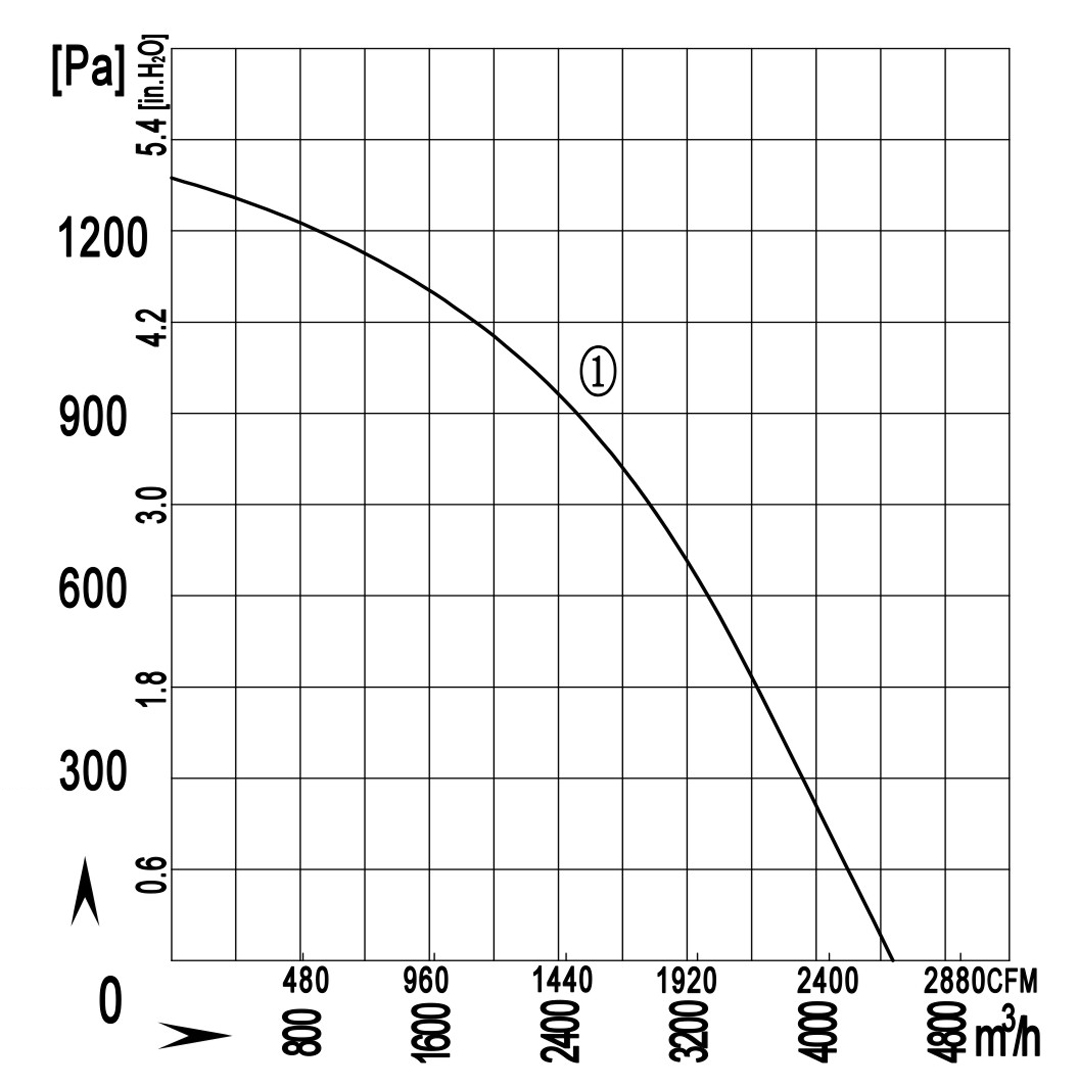

| 曲线 Curves |
 |
| 外形尺寸 Dimensions |
 |
