详细参数
| 技术参数 Specifications | |||||||||||
| Voltage | Frequency | Current | Input Power | Speed | Capacitor | Air Flow | Noise | Temperature | Curve No. | Approvals | |
| Type | V | Hz | A | W | rpm | u F | m³/h/CFM | dB(A) | Min/Max(℃） | # | |
| B4D560-220A-AXM0 | 380/400 | 50 | 4.50 | 2500 | 1350 | / | 11000/6470 | 85 | -30/+60 | ① | CCC,CE,RoHS |
| B6D560-220A-AWM0 | 380/400 | 50 | 1.80 | 900 | 910 | / | 9000/5294 | 73 | -30/+60 | ② | |

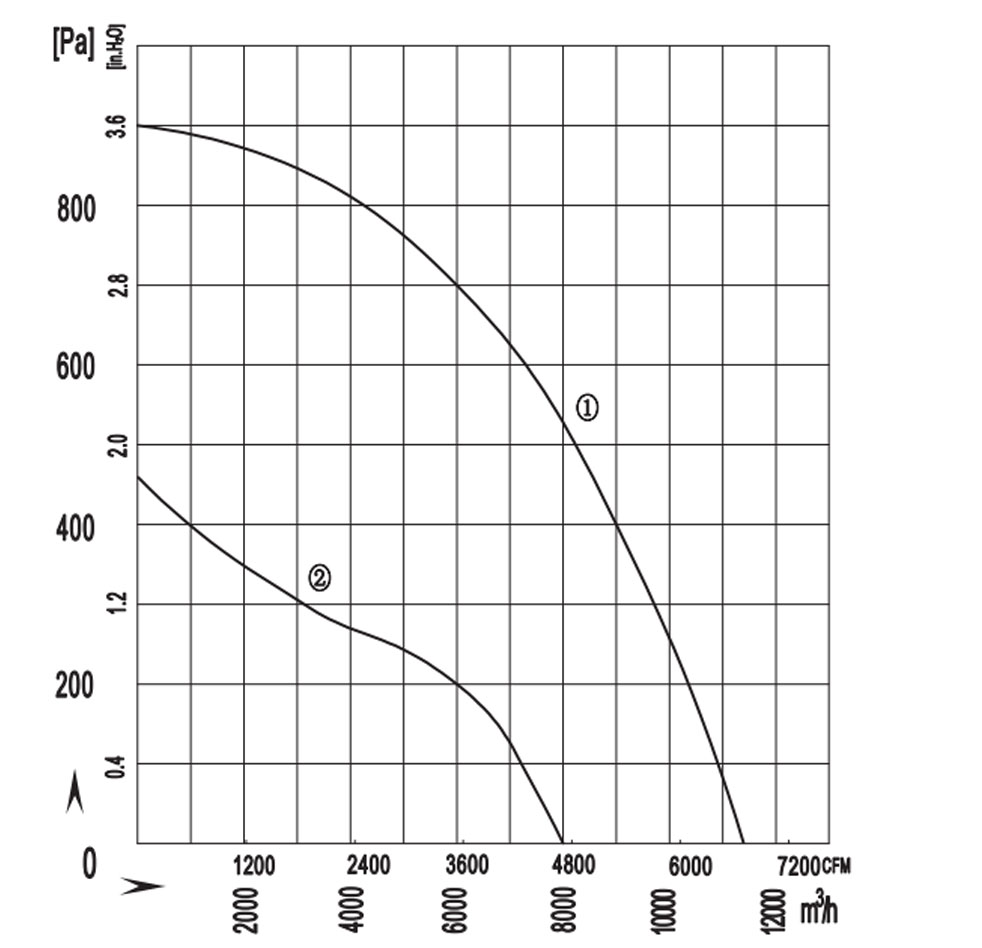

| 曲线 Curves |
 |

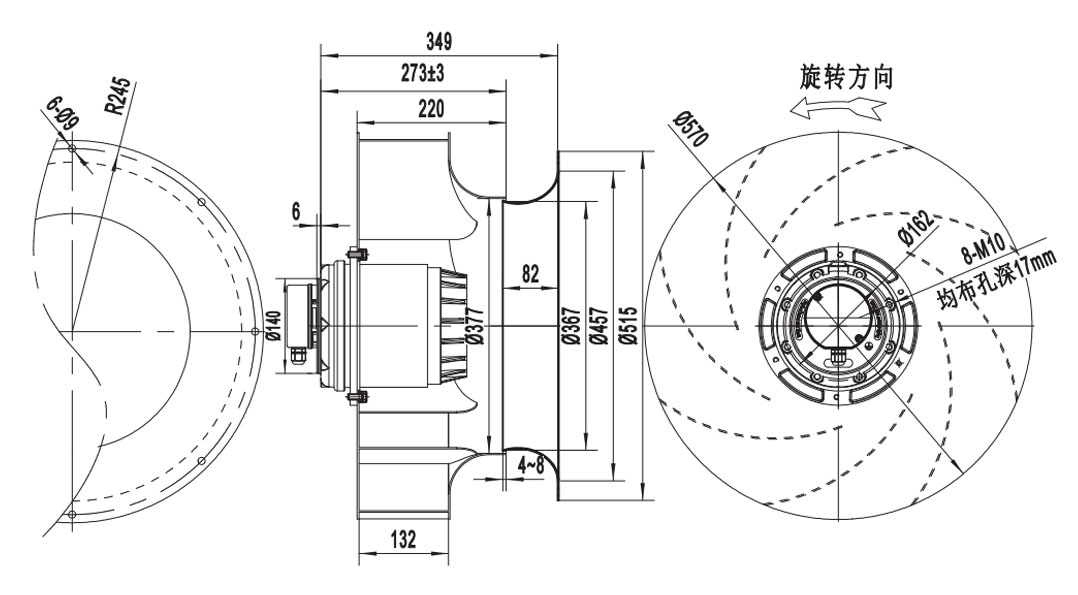

| 外形尺寸 Dimensions |
 |
