详细参数
| 技术参数 Specifications | ||||||||||||
| Voltage | Frequency | Current | Input Power | Speed | Capacitor | Air Flow | Noise | Temperature | Curve No. | Approvals | ||
| Type | V | Hz | A | W | rpm | u F | m³/h/CFM | dB(A) | Min/Max(℃） | # | ||
| F2E100-025W-AA05 | 220/230 | 50 | 0.1 | 28 | 2550 | 1 | 100/58 | 54 | -30/+60 | ① | CCC,CE,RoHS | |
| 220/230 | 60 | 0.13 | 31 | 2850 | 1 | 110/64 | 56 | -30/+60 | ② | CCC,CE,RoHS | ||

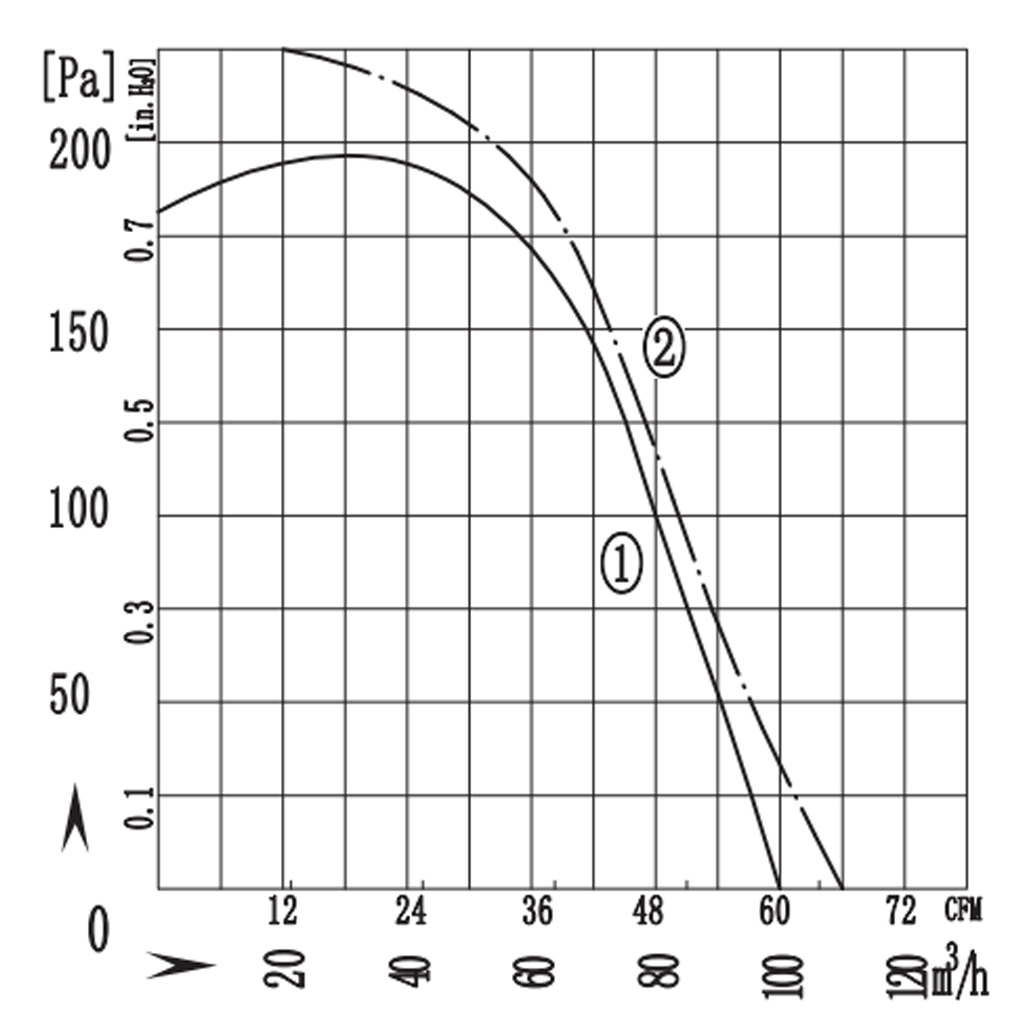

| 曲线 Curves |
 |

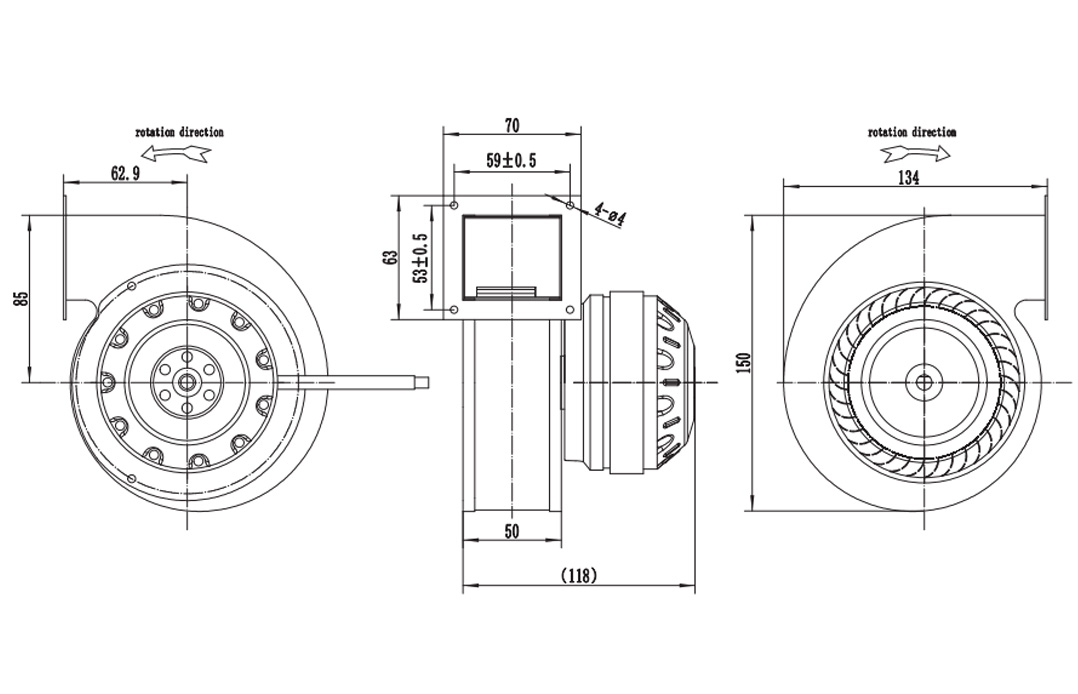

| 外形尺寸 Dimensions |
 |
