详细参数
| 技术参数 Specifications | ||||||||||||
| Voltage | Frequency | Current | Input Power | Speed | Capacitor | Air Flow | Noise | Temperature | Curve No. | Approvals | ||
| Type | V | Hz | A | W | rpm | u F | m³/h/CFM | dB(A) | Min/Max(℃） | # | ||
| F2E133-073W-AA00 | 220/230 | 50 | 0.37 | 83 | 1850 | 2 | 290/170 | 61 | -30/+60 | ① | CCC,CE,RoHS | |
| 220/230 | 60 | 0.43 | 95 | 1750 | 2 | 270/160 | 63 | -30/+60 | ② | CCC,CE,RoHS | ||

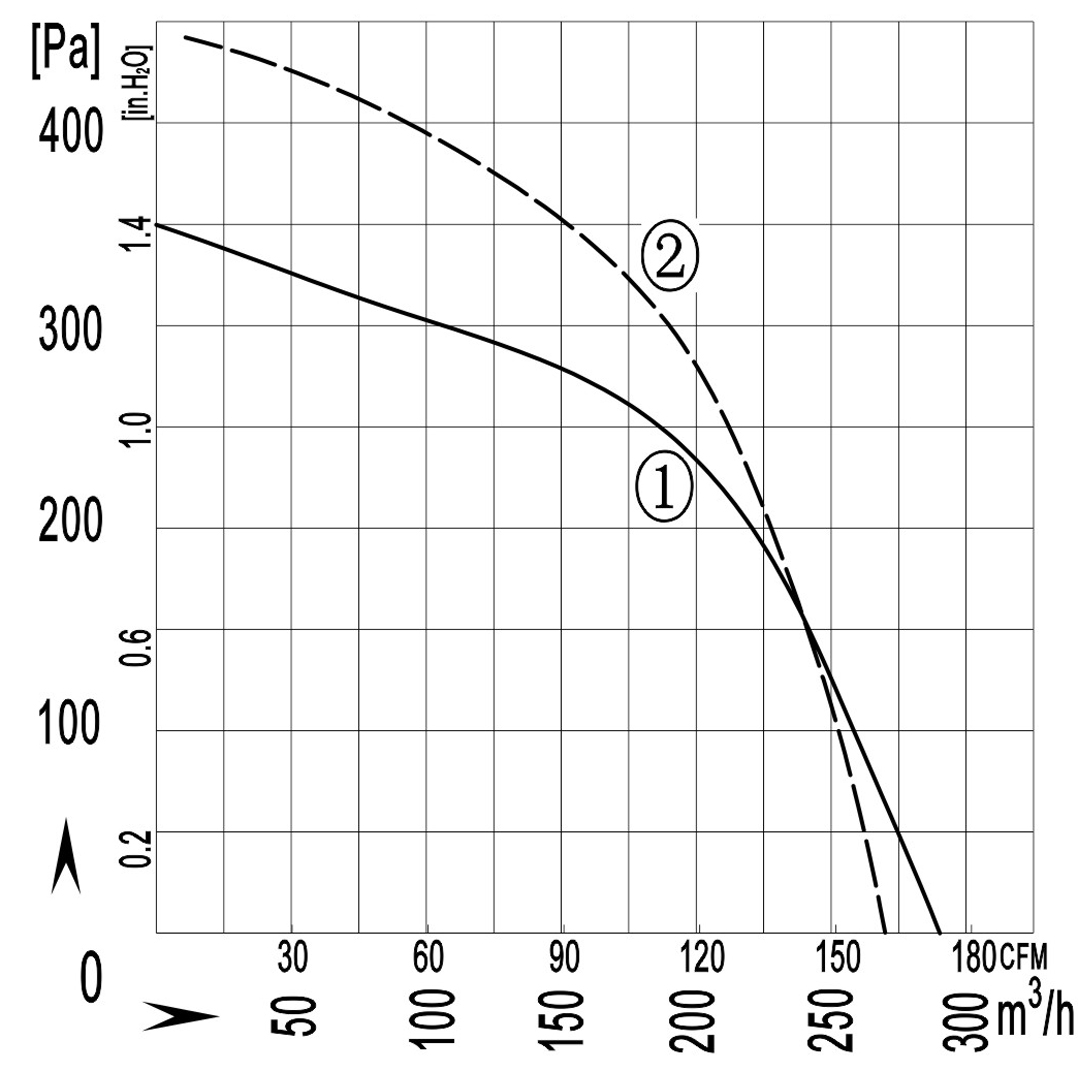

| 曲线 Curves |
 |
| 外形尺寸 Dimensions |
 |
