详细参数
| 技术参数 Specifications | |||||||||||
| Voltage | Frequency | Current | Input Power | Speed | Capacitor | Air Flow | Noise | Temperature | Curve No. | Approvals | |
| Type | V | Hz | A | W | rpm | u F | m³/h/CFM | dB(A) | Min/Max(℃） | # | |
| F2E140-060W-AASA | 110/120 | 60 | 0.42 | 92 | 1300 | 8 | 320/189 | 50 | -30/+60 | ① | UL,RoHS |
| F2E140-060W-ACSA | 110/120 | 60 | 0.60 | 135 | 1800 | 12 | 420/247 | 58 | -30/+60 | ② | UL,RoHS |
| 曲线 Curves |
 |

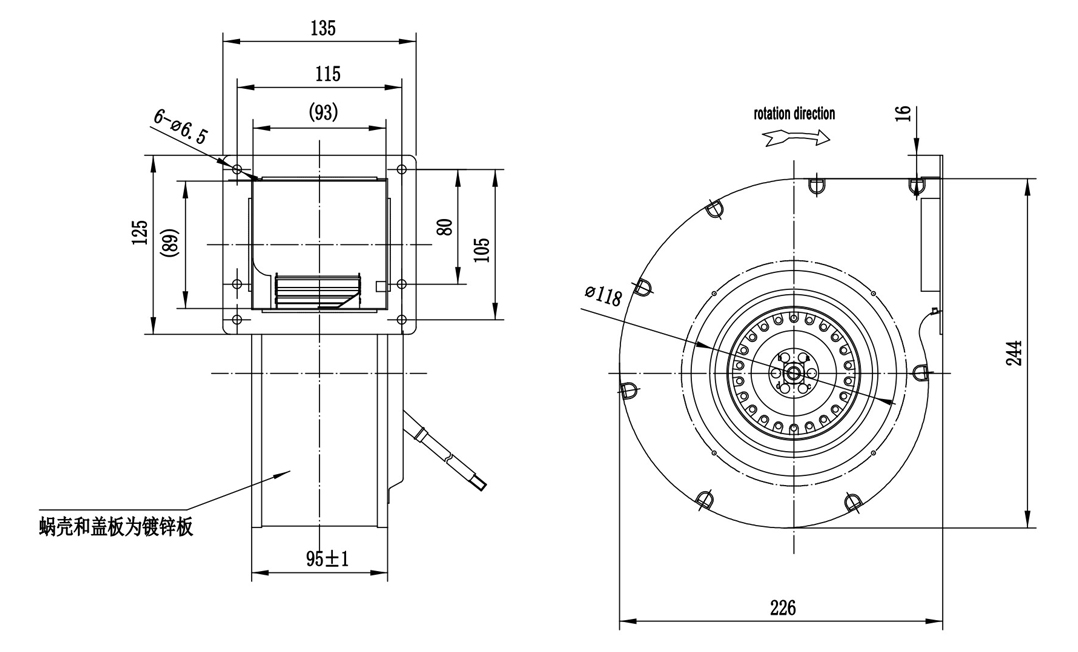

| 外形尺寸 Dimensions |
 |
