详细参数
| 技术参数 Specifications | ||||||||||||
| Voltage | Frequency | Current | Input Power | Speed | Capacitor | Air Flow | Noise | Temperature | Curve No. | Approvals | ||
| Type | V | Hz | A | W | rpm | u F | m³/h/CFM | dB(A) | Min/Max(℃） | # | ||
| F4E200-185S-TS00 | 220/230 | 50 | 1.80 | 360 | 1400 | 10 | 1900/1117 | 70 | -30/+60 | ① | CCC,CE,RoHS | |
| 1.50 | 311 | 1160 | 1500/882 | 65 | -30/+60 | ② | CCC,CE,RoHS | |||||
| 1.30 | 235 | 910 | 1000/588 | 59 | -30/+60 | ③ | CCC,CE,RoHS | |||||

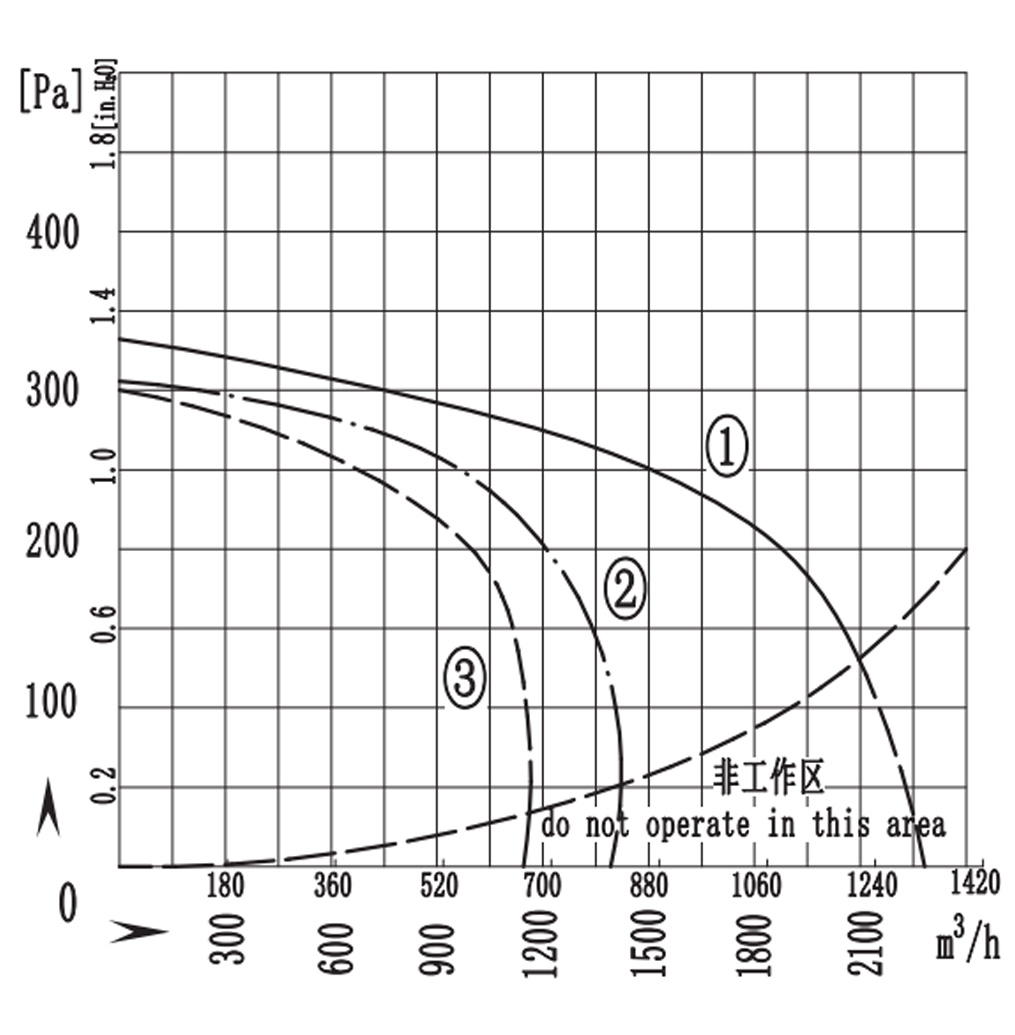

| 曲线 Curves |
 |

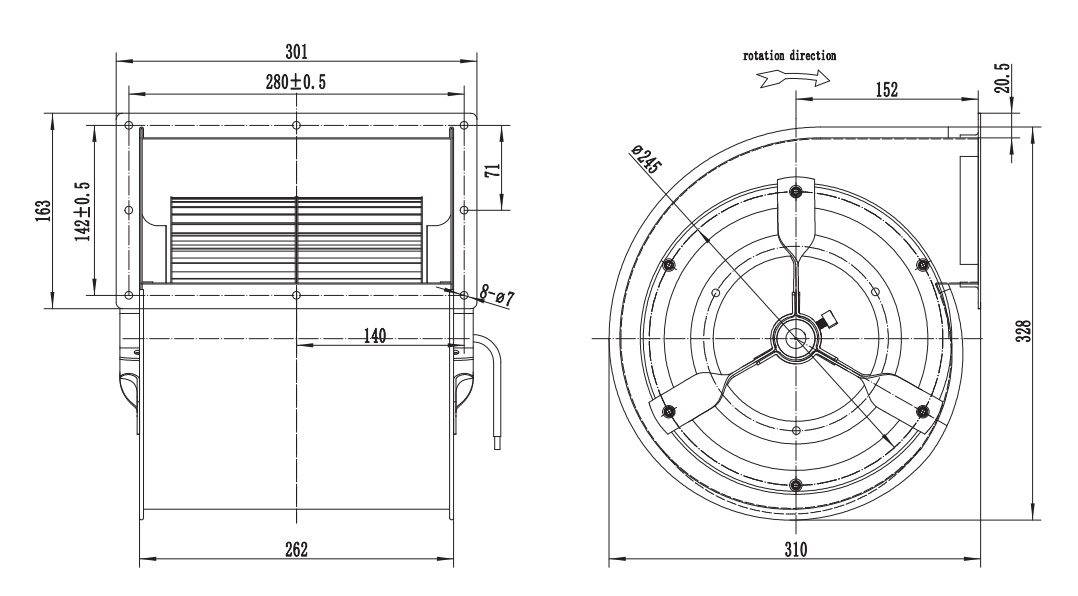

| 外形尺寸 Dimensions |
 |
