详细参数
| 技术参数 Specifications | |||||||
| 型号 | 曲线 | 额定电压 | 转速 | 输入功率 | 电流 | 噪音 | 使用温度 |
| Type | Curve | Nominal voltage | Speed | Power input | Current draw | Sound pressure level | Perm.amb.temp. |
| [VDC] | [rpm] | [W] | [A] | [dB] | [℃] | ||
| A3P300-DC092-*** | ① | 310 | 2100 | 165 | 0.52 | 64 | -25～+60 |

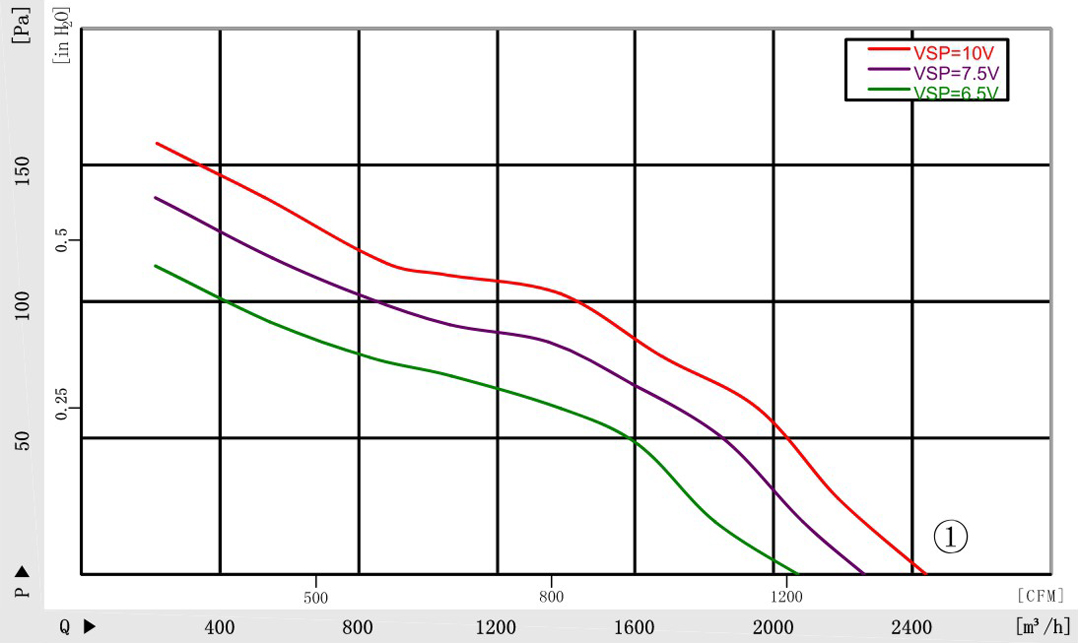

| 曲线 Curves | |||
 |
信号名 SIGNAL |
颜色 cOLOR |
规格 SPEC |
| vs | 红 RED |
DC310V | |
| GND | 照 BLACK |
GND | |
| vcc | 白 WHITE |
DC15N | |
| Vsp | 黄 YELLOW |
0-1OVDC/PWM | |
| TACH | 蓝 BLUE |
12 Pulse/R | |

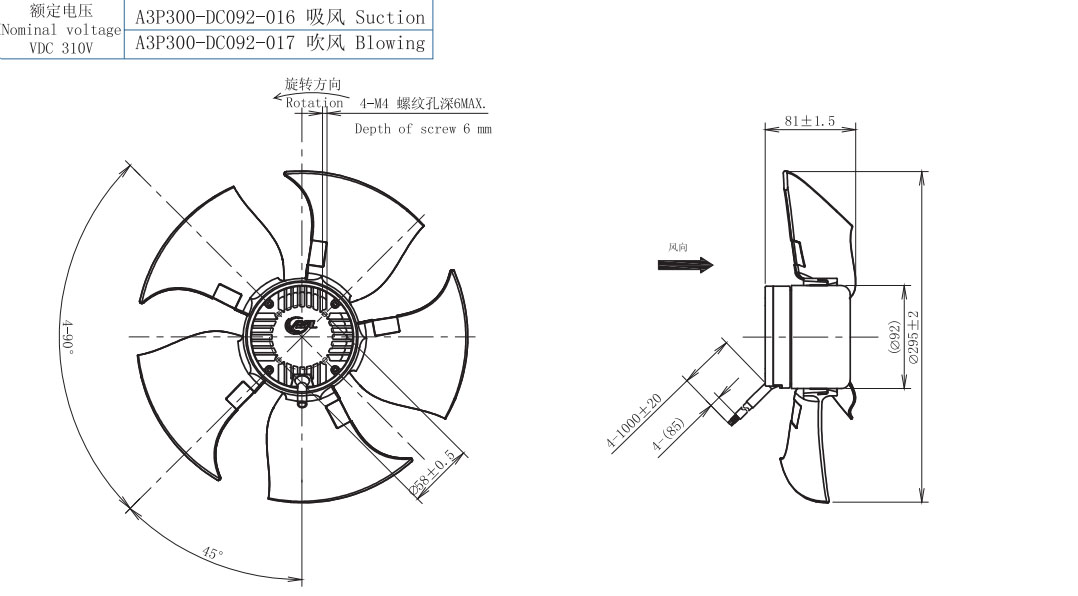

| 外形尺寸 Dimensions | 无网罩 Without grill |
 |
|

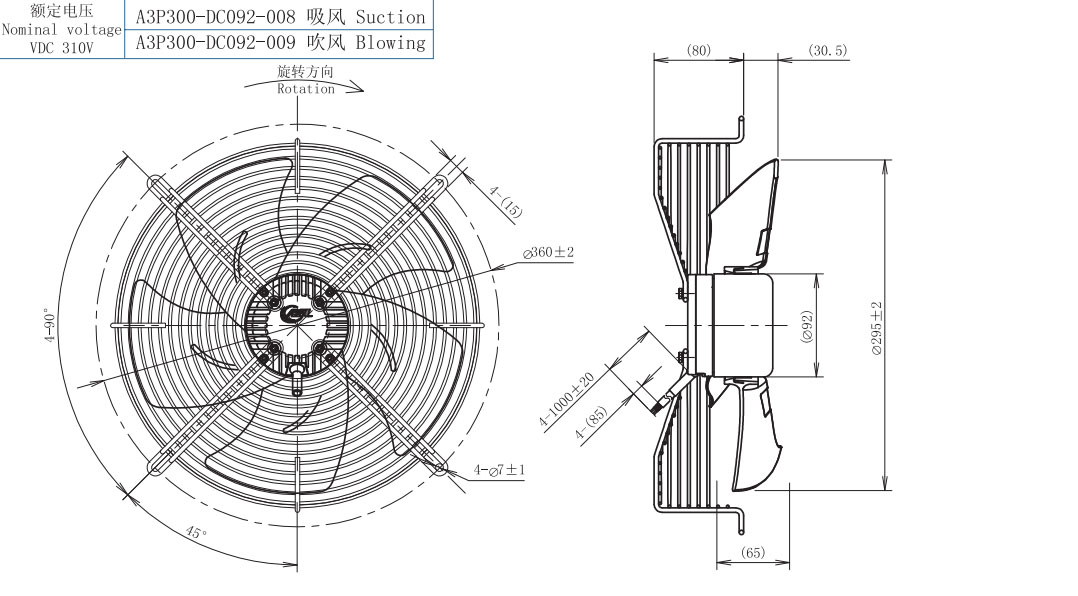

| 外形尺寸 Dimensions | 带墙形凹网罩 With wall concave net cover grill |
 |
|

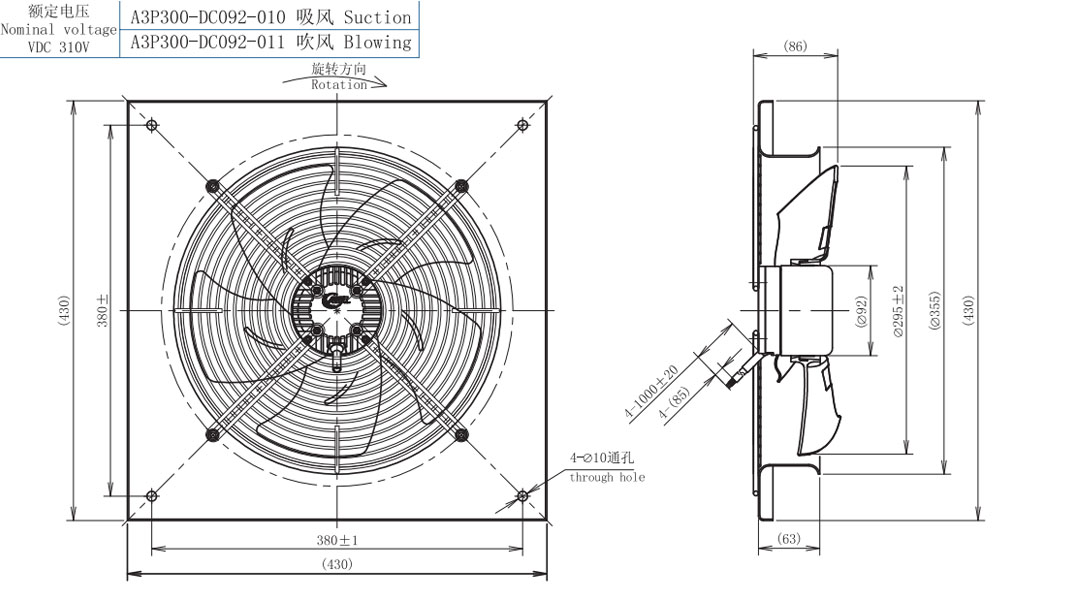

| 外形尺寸 Dimensions | 带导风面板 With wind guide panel |
 |
|
