详细参数
| 技术参数 Specifications | |||||||
| 型号 | 曲线 | 额定电压 | 转速 | 输入功率 | 电流 | 噪音 | 使用温度 |
| Type | Curve | Nominal voltage | Speed | Power input | Current draw | Sound pressure level | Perm.amb.temp. |
| [VDC] | [rpm] | [W] | [A] | [dB] | [℃] | ||
| F3P120-DC072-007 | ① | 24 | 2400 | 95 | 3.96 | 60 | -25～+60 |
| F3P120-DC072-010 | 48 | 2400 | 95 | 1.98 | 60 | -25～+60 |

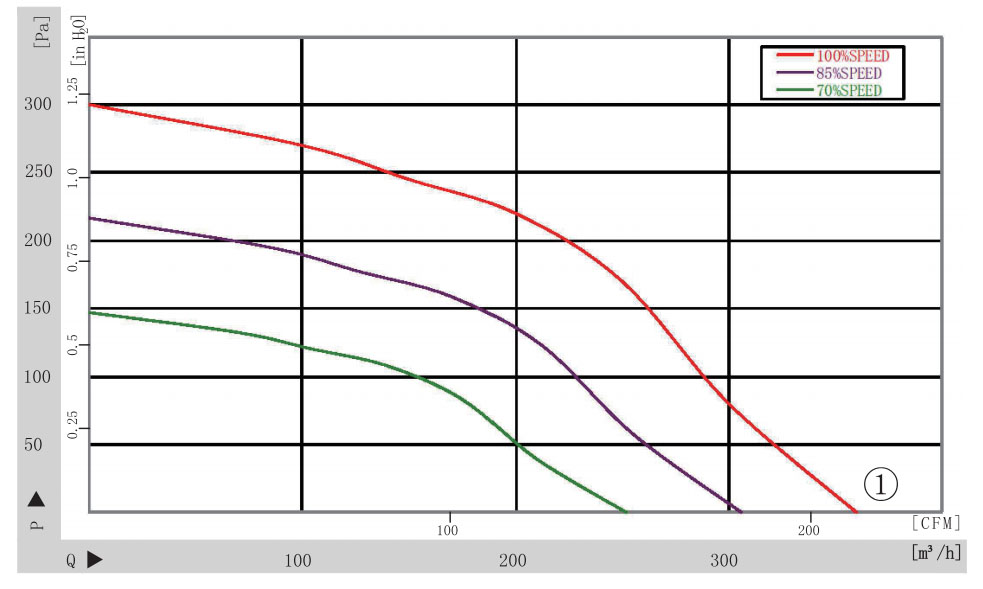

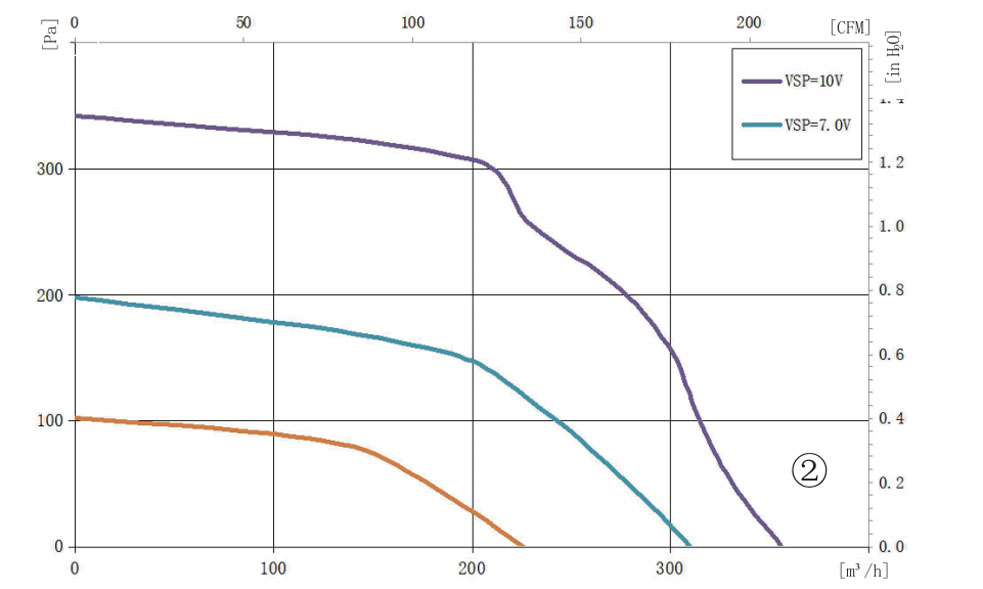

| 曲线 Curves | |||||||
 |
信号名 | 颜色 | 规格 | ||||
| SIGNAL | COLOR | SPEC | |||||
| Vs | 红 | DC310V | |||||
| RED | |||||||
| GND | 黑 | GND | |||||
| BLACK | |||||||
| Vcc | 白 | DC15V | |||||
| WHITE | |||||||
| Vsp | 黄 | 0-10VDC/PWM | |||||
| YELLOW | |||||||
| TACH | 蓝 | 12 Pulse/R | |||||
| BLUE | |||||||

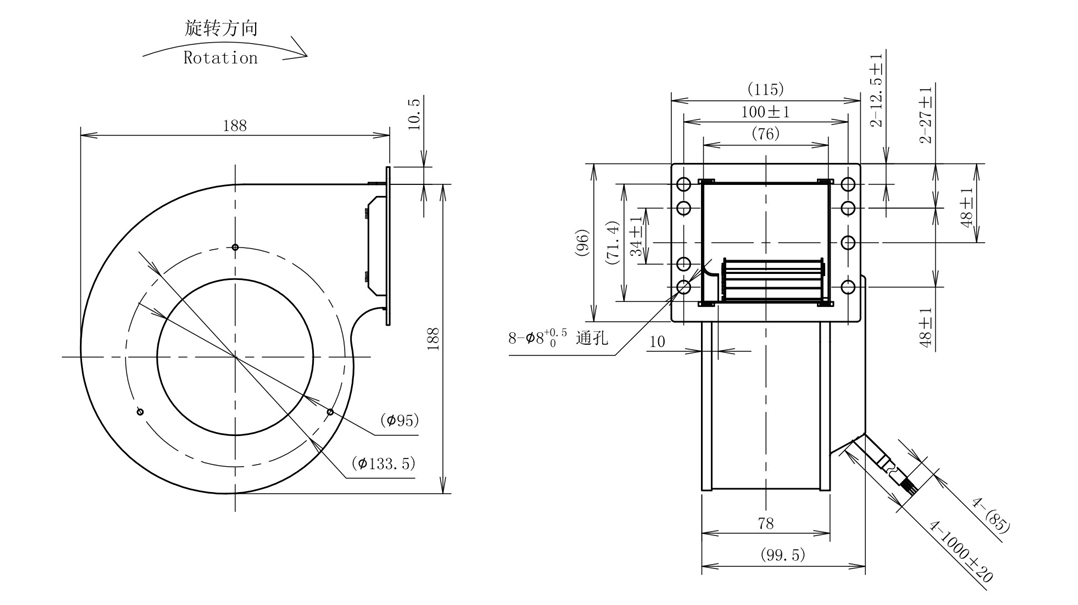

| 外形尺寸 Dimensions |
 |
