详细参数
| 技术参数 Specifications | |||||||||
| 型号 | 曲线 | 额定电压 | 频率 | 转速 | 输入功率 | 电流 | 噪音 | 使用温度 | |
| Type | Curve | Nominal voltage | Frequency | Speed | Power input | Current draw | Sound pressure level | Perm.amb.temp. | |
| A3P550-EC137-*** | [VAC] | [Hz] | [rpm] | [W] | [A] | [dB] | [℃] | ||
| ① | 3～380 | 50/60 | 1690 | 950 | 1.65 | 78 | -25～+60 | ||

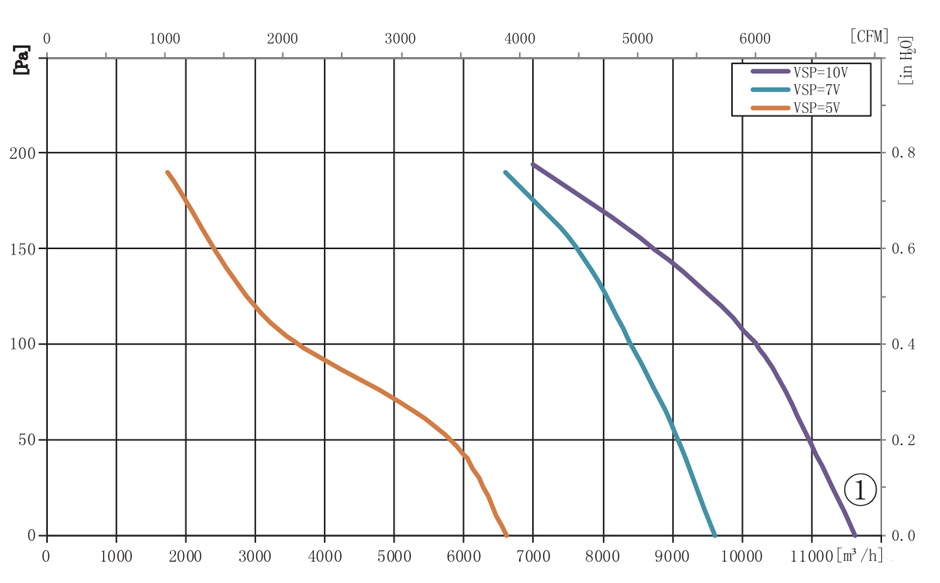

| 曲线 Curves | |||||||||
 |
信号名 | 颜色 | 规格 | 信号名 | 颜色 | 规格 | |||
| SIGNAL | COLOR | SPEC | SIGNAL | COLOR | SPEC | ||||
| L1 | 黑 | AC380V | Vcc | 红 | DC10V输出 | ||||
| BLACK | 50/60Hz | RED | |||||||
| L2 | 黑 | AC380V | Vsp | 黄 | 0-10VDC/PMW | ||||
| BLACK | 50/60Hz | YELLOW | |||||||
| L3 | 黑 | AC380V | GND | 蓝 | GND | ||||
| BLACK | 50/60Hz | BLUE | |||||||
| PE | 黄/绿 | 接地 | FG | 白 | 12 Pulse/R | ||||
| YELLOW/GREEN | EARTH | WHITE | |||||||

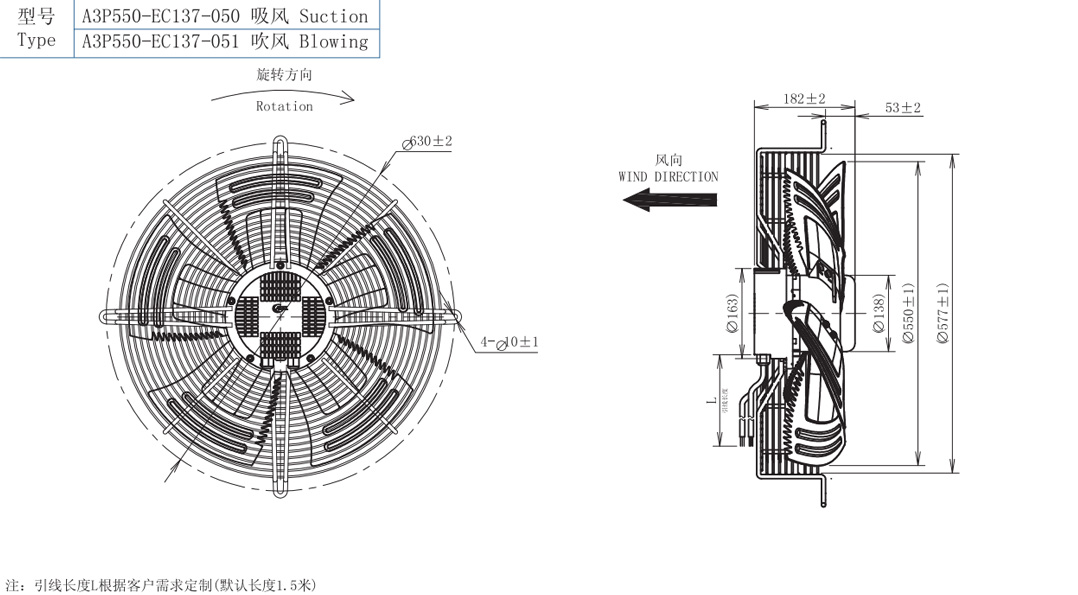

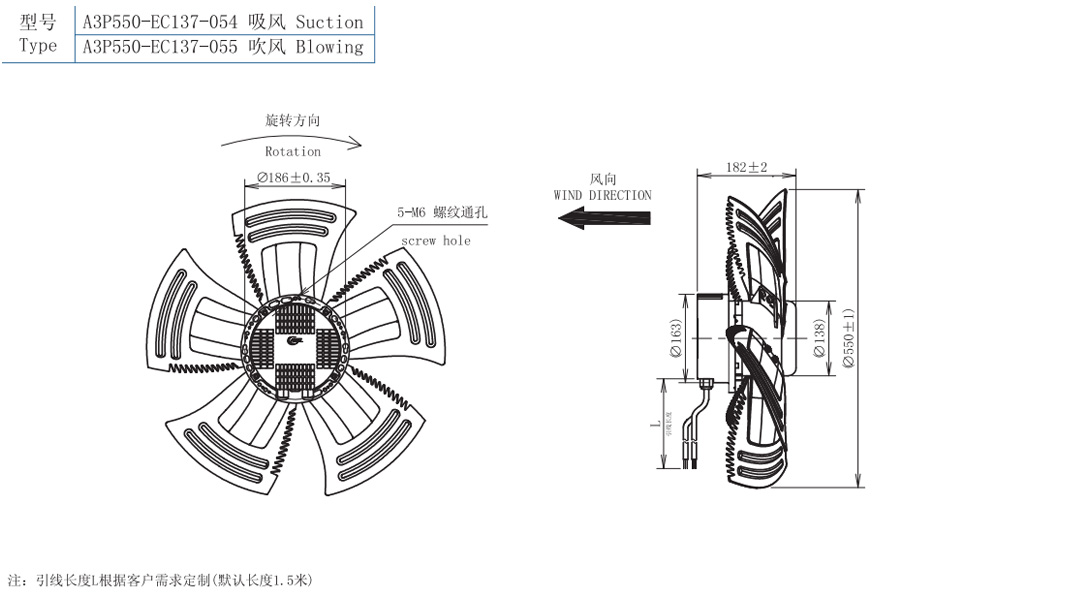

| 外形尺寸 Dimensions | |
 |

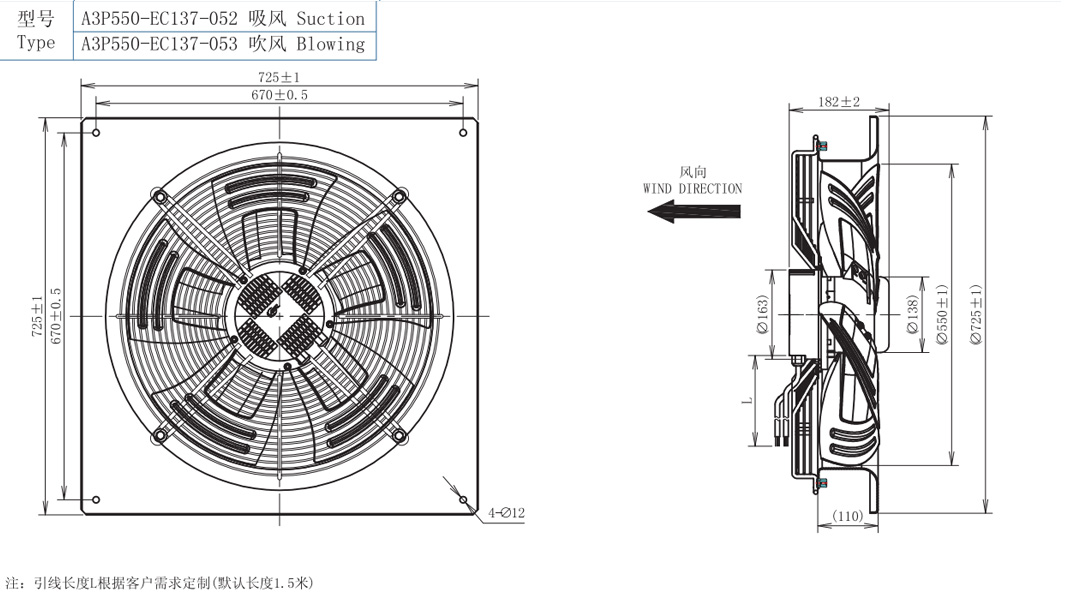

| 外形尺寸 Dimensions | 带墙形凹网罩 With wall concave net cover grill |
 |
|
| 外形尺寸 Dimensions | 带导风面板 With wind guide panel |
 |
|
