Φ200 AC轴流风机
产品概述
风轮材质: 冷轧钢板制成 Material:Cold rolled steel
防护等级: IP44 Protection Class: IP44
认证: CCC CE Approvals: CCC CE
绝缘等级: F级 Insulation class: F
详细参数
| 技术参数 Specifications | ||||||||||||
| Voltage | Frequency | Current | Input Power | Speed | Capacitor | Air Flow | Noise | Temperature | Curve No. | Approvals | ||
| Type | V | Hz | A | W | RPM | uF | m³/h / CFM | dB(A) | Min / Max (℃) | # | ||
| A2E200S-7DM-AA00 | 220/230 | 50 | 0.30 | 65 | 2300 | 2 | 800 /518 | 53 | -30/+80 | ① | CCC.CE,RoHS | |
| 60 | 0.34 | 80 | 2600 | 980 / 576 | 55 | ② | ||||||
| A2D200S-7DM-AA00 | 380/400 | 50 | 0.16 | 65 | 2300 | / | 880 /518 | 53 | -30/+60 | ① | CCC.CE,RoHS | |
| 60 | 0.13 | 70 | 2400 | 980 / 578 | 55 | ② | ||||||

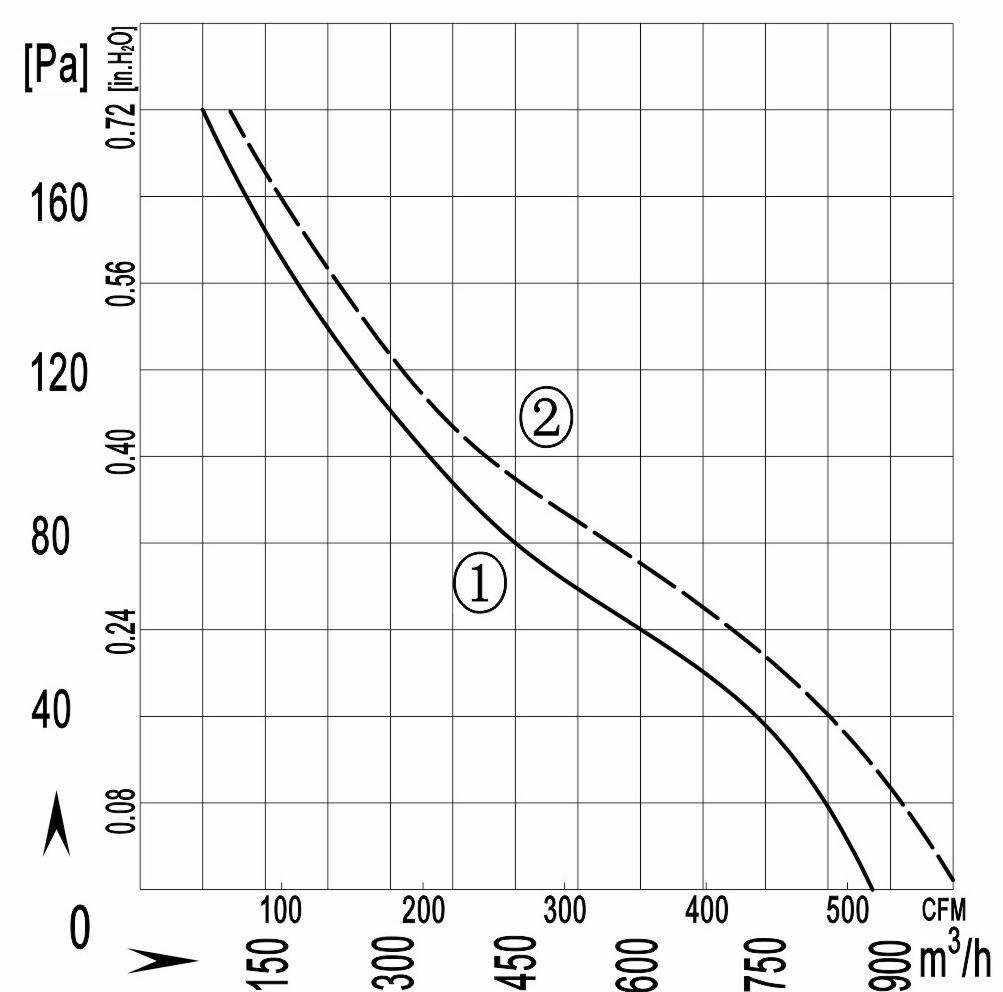

| 曲线 Curves | |||||||
 |
|||||||

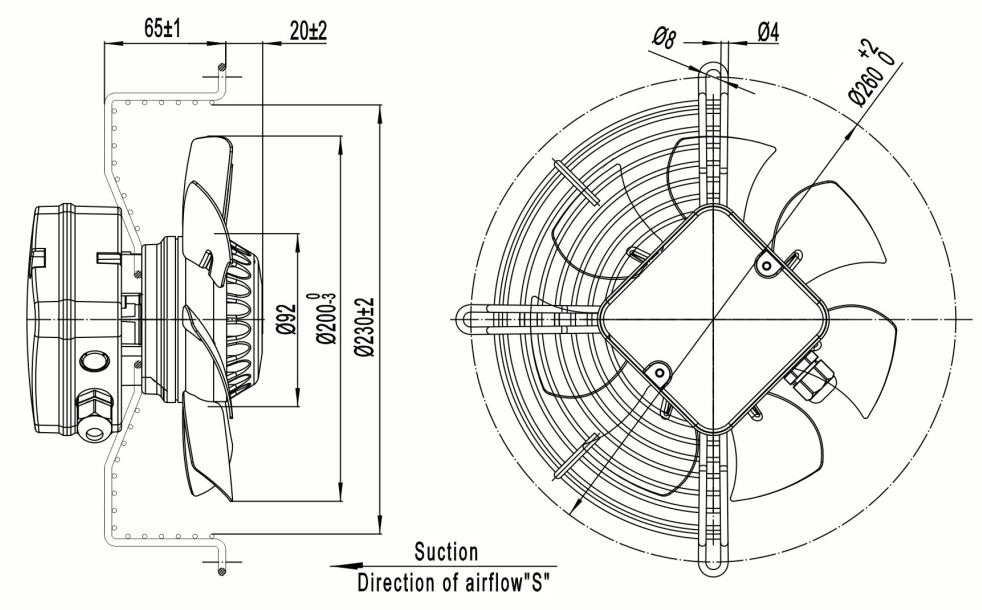

| 外形尺寸 Dimensions |
